Product Details
Place of Origin: China
Brand Name: QOGRISYS
Model Number: 6252M-PUC
Payment & Shipping Terms
Minimum Order Quantity: 5/PCS
Price: USD10-11/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Antenna: |
External |
Working Frequency: |
2.4/5.8/6GHz |
Size: |
22.0x30.0x2.2mm |
Working Voltage: |
3.3V |
Wireless Standard: |
802.11a/b/g/n/ac /ax+BT5.3 |
Supported Systems: |
Android/Linux/Windows |
RF Antenna: |
2T2R |
Interface Type: |
PCIe/USB |
Antenna: |
External |
Working Frequency: |
2.4/5.8/6GHz |
Size: |
22.0x30.0x2.2mm |
Working Voltage: |
3.3V |
Wireless Standard: |
802.11a/b/g/n/ac /ax+BT5.3 |
Supported Systems: |
Android/Linux/Windows |
RF Antenna: |
2T2R |
Interface Type: |
PCIe/USB |
The 6252M-PUC is a highly integrated module based on the RTL8852CE chipset. It features a WLAN PCI Express network interface with support for Multi-User MIMO, along with an integrated Bluetooth 5 USB interface. The module combines WLAN MAC, 2T2R WLAN baseband, and radio frequency components, providing an ideal solution for high-performance wireless/Bluetooth devices.

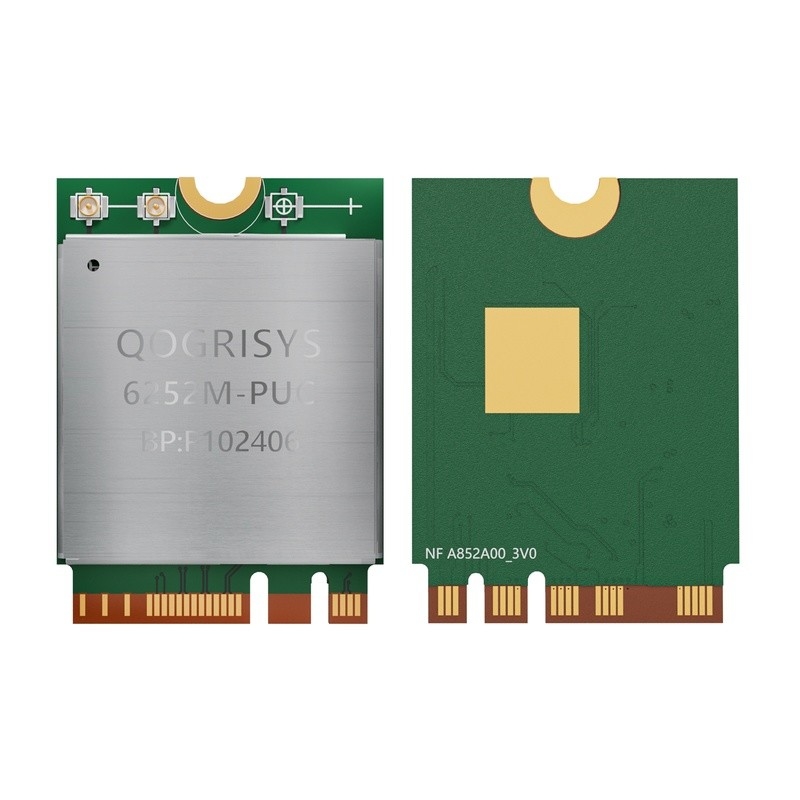

Product display
SIZE
Block Diagram
Note
If you need more product information, please leave a message for consultation
