Place of Origin: | China |
---|---|
Brand Name: | FN-LINK |
Certification: | SRRC/ROHS/REACH |

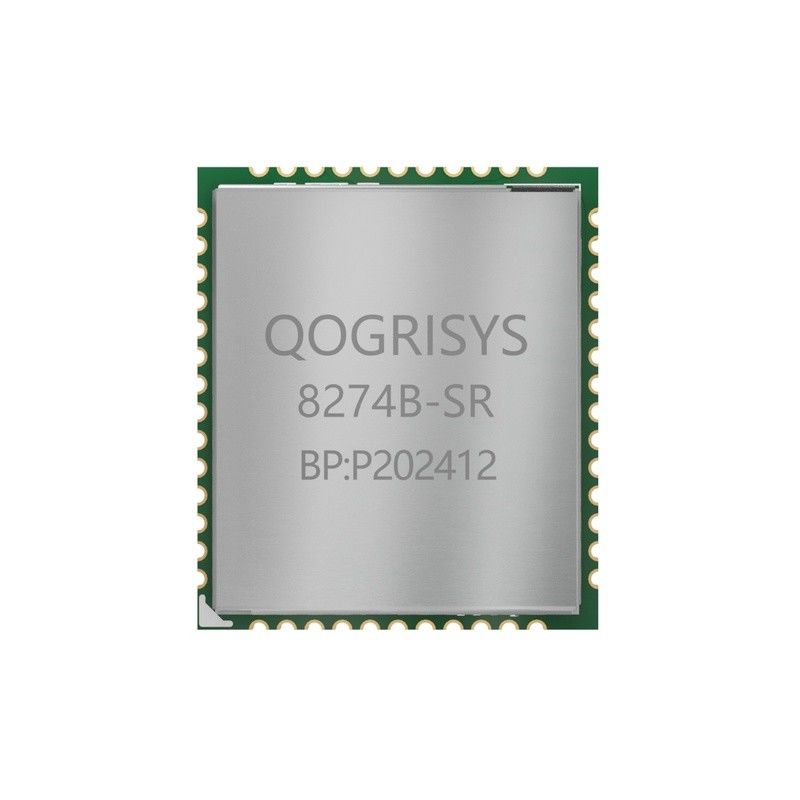

Model Number: | 8274B-SR |
Minimum Order Quantity: | 5/pcs |
Price: | USD 5.4-8.8/pcs |
Packaging Details: | Reel |
Delivery Time: | 15-40 workdays |
Payment Terms: | T/T |
Supply Ability: | 4000000pcs/month |
Production Name: | SDIO WiFi Module | IC Chip: | QCA6174A-3 |
---|---|---|---|
Antenna: | 2T2R | Throughput: | HT20/40/80 |
Color: | Like Picture | Mass Production: | Yes |
High Light: | 2T2R Antenna SDIO WiFi Module,QCA6174 Remote Control Module,Qualcomm Chip SDIO WiFi Module |
Part No. | 8274B-SR |
Functionalities | Support Wi-Fi/Bluetooth functionalities |
Package |
L x W x H: 15 x 13 x 1.95mm (typical) |
Wi-Fi Interface |
Support SDIO V3.0 |
Bluetooth Interface | UART / PCM |
Operating temperature | -30°C to 85°C |
Storage temperature | -40°C to 125°C |
Bluetooth Description
Feature | Description | |||
General Specification | ||||
Bluetooth Standard | Bluetooth V5.0 | |||
Host Interface | UART | |||
Antenna Reference | Small antennas with 0~2 dBi peak gain | |||
Frequency Band | 2402 MHz ~ 2480 MHz | |||
Number of Channels | 79 channels | |||
Modulation | GFSK, π/4-DQPSK,8DPSK | |||
RF Specification | ||||
Min. | Typical. | Max. | ||
Output Power (Class 1.5) | 10 dBm | |||
Output Power (Class 2) | 2 dBm | |||
Sensitivity @ BER=0.1% for GFSK (1Mbps) |
-92 dBm | |||
Sensitivity @ BER=0.01% for π/4-DQPSK (2Mbps) |
-92 dBm | |||
Sensitivity @ BER=0.01% for 8DPSK (3Mbps) |
-85 dBm | |||
Maximum Input Level | GFSK (1Mbps):-20dBm | |||
π/4-DQPSK (2Mbps) :-20dBm | ||||
8DPSK (3Mbps) :-20dBm |
