2.4 Ghz 150Mbps Realtek Wireless BT Module For Tablet Device

Overview

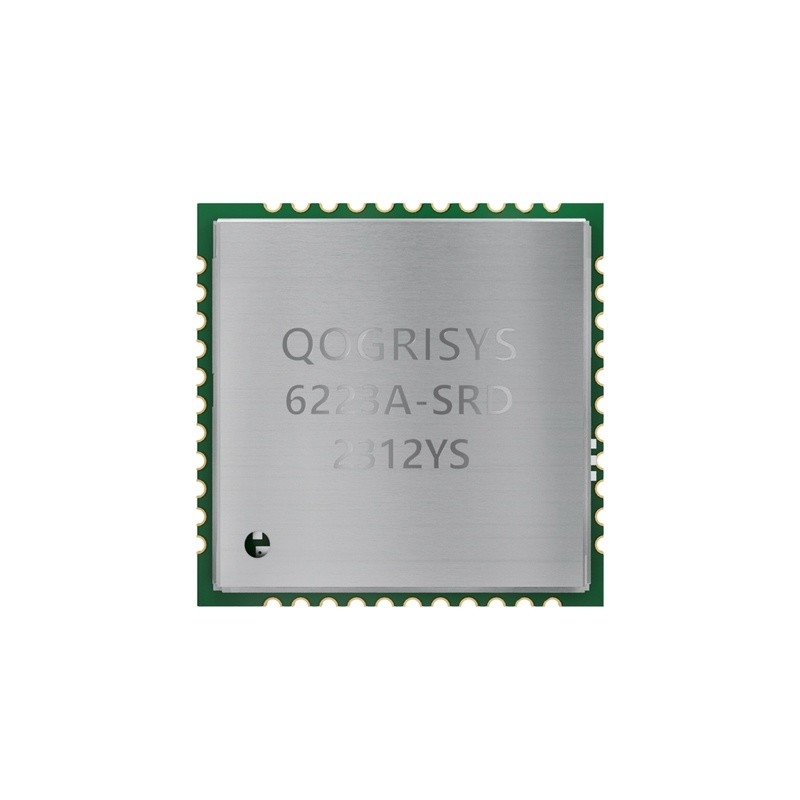

This product is a small bluetooth and wireless network combination module, the board size is 12.2mm*13mm*1.7mm. It is easy to combine with SMT process, specially suitable for tablets, ultra book, as well as consumer products. It provides SDIO interface for WiFi and Uart for Bluetooth. The biuetooth version supported is BT2.1+EDR/BT3.0 and BT4.2. 6223A-SRD highly integrated WIFI and BT functions to single chip, It integrates whole WiFi/BT function blocks into a chip,such as SDIO/Uart, MAC, BB,AFE,RFE, PA, EEP ROM and LDO/SWR, except fewer passive components remained on PCB.This compact module is a total solution for a combination of WiFi + BT technologies. The module is specifically developed for Smart phones and Portable devices.

Where the module can be applied?

WIFI module, also known as serial port WIFI module, belongs to the IOT transmission layer. The traditional hardware device embedded WIFI module can directly use the WIFI to connect to the Internet, which is an important part of realizing wireless smart home, M2M and other Internet of things applications. WIFI module is widely used in the following aspects:

► Consumer Application: Tablet/ Smart TV/ IPTV/ OTT/ IPC/ AI Speaker/ Security System/ Toys

► Commercial And OA Application: Printer/ POS Terminal/ Projector/ Meeting System/ Interactive WhiteBoard/ Education     Equipment

► Industrial And Vehical Application: Instruments/ Vehicle before-assembly/ afterassembly/ High-speed train/ Charging pile

► Medical Application: Medical equipments/Medical instruments

► Other Consumer Electronic Products: Looking forward to your wisdom.

Some Important information

Model No:  6223A-SRD

Main Chipset:  RTL8723DS

Frequency:   2.4GHzv

Data Rate:   150Mbps

Interface:  SDIO/Uart

WiFi Standard:   IEEE802.11b/g/n

Antenna:  External Antenna

Temperature:  Operating: 0° C to 70°C

                Storage: -40° C to 85°C

Security

WEP TKIP AES WPA WPA2
