Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi, Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac Access Points in the wireless LAN.
Application
Comemercial/Enterprise Transportation/Mobility
Commercial Building Automation Aftermarket/OEM Telematics
Patient Monitoring Asset Tracking
Inventory Management Fleet Management
Home Security/Automation Intelligent Transportaion
Kiosks,Vendng,POS People Pet Tracking
General Speciafication
Model Name |
8223A-SR |
Product Description |

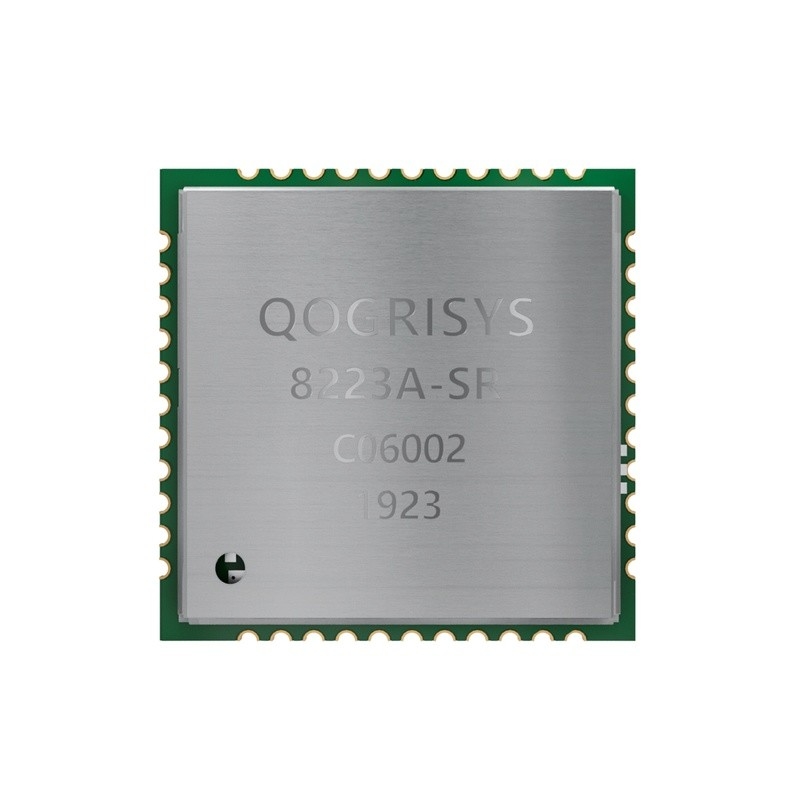

Support WiFi/Bluetooth functionalities |
Dimension |
L x W x H: 12 x 12 x 1.8 (typical) mm |
WiFi Interface |
Support SDIO V3.0 |
BT Interface |
UART / PCM |
Operating temperature |
-30°C to 85°C |
Storage temperature |
-40°C to 125°C |
Recommeded Operating Rating
Min. |
Typ. |
Max. |
Unit |
|
Operating Temperature |
-30 |
25 |
85 |
deg.C |
VCC33 |
3.15 |
3.3 |
3.45 |
V |
VDDIO |
1.7 |
1.8 or 3.3 |
3.45 |
V |
SDIO Pin Description
The module supports SDIO version 3.0 for all 1.8V 4-bit UHSI speeds: SDR50(100 Mbps),SDR104(208MHz) and DDR50(50MHz, dual rates) in addition to the 3.3V default speed(25MHz) and high speed (50 MHz). It has the ability to stop the SDIO clock and map the interrupt signal into a GPIO pin. This ‘out-of-band’ interrupt signal notifies the host when the WLAN device wants to turn on the SDIO interface. The ability to force the control of the gated clocks from within the WLAN chip is also provided.
