IET SDIO 1T1R WIFI Bluetooth Combo Module Wireless RF RTL8723DS

IET SDIO 1T1R WIFI Bluetooth Combo Module Wireless RF RTL8723DS

  • High Light

    1T1R WIFI Bluetooth Combo Module

    ,

    SDIO WIFI Bluetooth Combo Module

    ,

    IET Wireless RF Module

  • Chipset
    RTL8723DS
  • WIFI Standard
    IEEE802.11b/g/n
  • Frequency
    2.4GHz
  • Interface
    SDIO/Uart
  • OS Support
    Windows/Android /Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    12.0x12.0x1.8mm
  • Application
    Tablet PC
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6223A-SRD
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.3-4.2/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

IET SDIO 1T1R WIFI Bluetooth Combo Module Wireless RF RTL8723DS

IET SDIO 1T1R WIFI Bluetooth Combo Module Wireless RF RTL8723DS

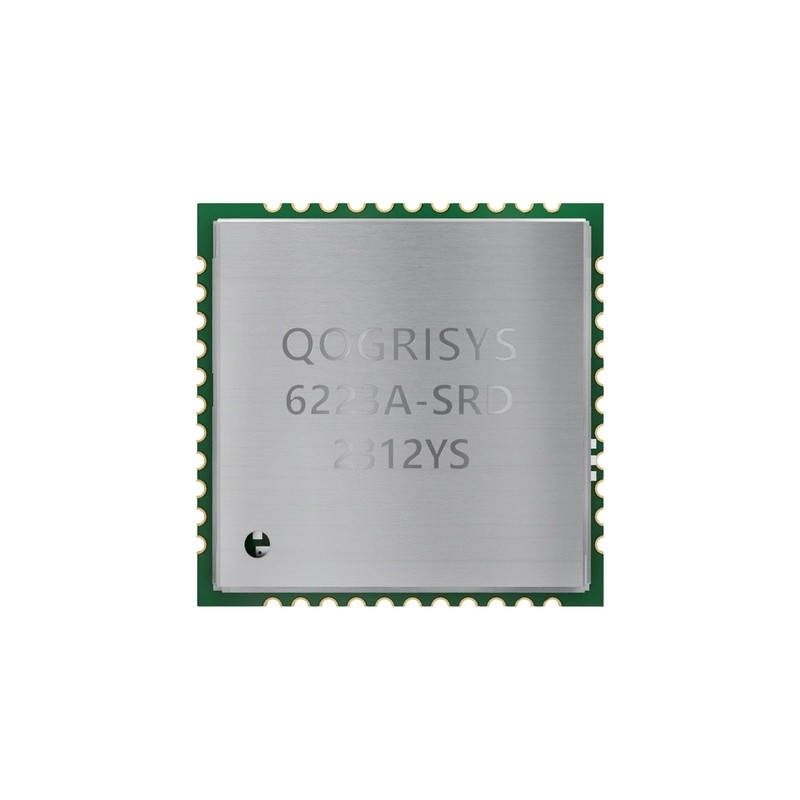

Module Picture
IET SDIO 1T1R WIFI Bluetooth Combo Module Wireless RF RTL8723DS 0



General Specification

Model Name

6223A-SRD

Product Description

Support Wi-Fi/Bluetooth functionalities

Dimension

L x W x H: 12 x 12 x1.8 (typical) mm

Wi-Fi Interface

Support SDIO V2.0

BT Interface

UART / PCM

Operating temperature

0°C to 70°C

Storage temperature

-40°C to 85°C

RoHS

All hardware components are fully compliant with EU RoHS directive

Power Consumption

Power Consumption (Typical by using SWR)

Wi-Fi only:
TX Mode: (Throughput mode) 170mA (MCS7/BW40/ 13dBm)
RX Mode: (Throughput mode) 130mA (MCS7/BW40 /-60dBm)

BT:

Inquiry & Page Scan: ACL no traffic:
SCO HV3:

0.9 mA

7.5mA 15.0mA



Pin Outline

IET SDIO 1T1R WIFI Bluetooth Combo Module Wireless RF RTL8723DS 1
