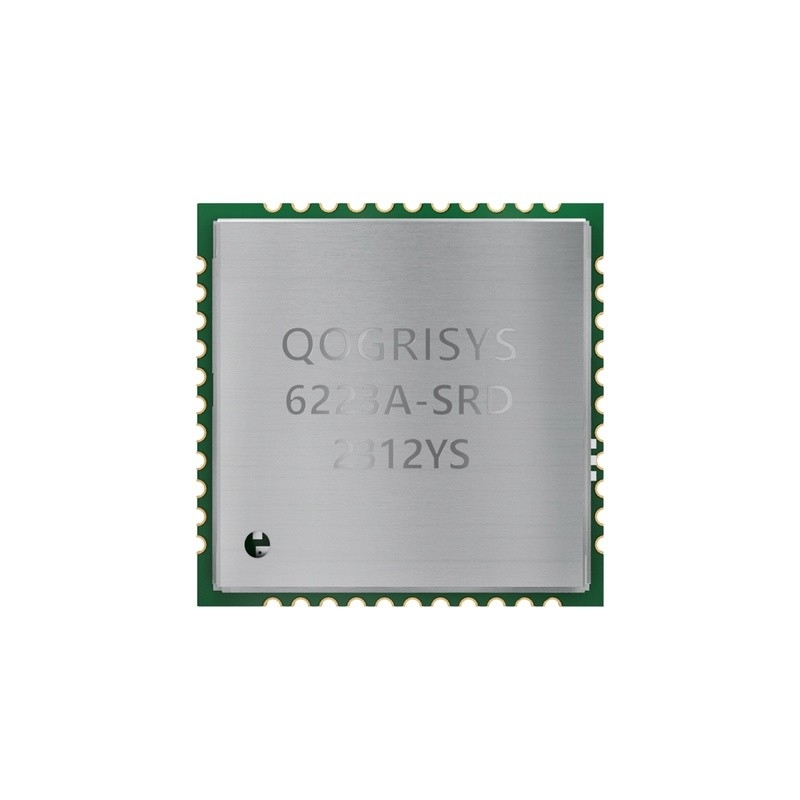

RTL8723DS Bluetooth4.2 SDIO Combo Module 2.4GHz For Tablet PC

RTL8723DS Bluetooth4.2 SDIO Combo Module 2.4GHz For Tablet PC

Products - WiFi BT Module
  • High Light

    RTL8723DS SDIO Combo Module

    ,

    Bluetooth 4.2 SDIO Combo Module

    ,

    2.4GHz Tablet PC BT Module

  • Chipset
    RTL8723DS
  • WIFI Standard
    IEEE802.11b/g/n
  • Frequency
    2.4GHz
  • Interface
    SDIO/Uart
  • OS Support
    Windows/Android /Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    12.0x12.0x1.8mm
  • Application
    Tablet PC
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6223A-SRD
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.3-4.2/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

RTL8723DS Bluetooth4.2 SDIO Combo Module 2.4GHz For Tablet PC

  • RTL8723DS Bluetooth4.2 SDIO Combo Module 2.4GHz For Tablet PC
Get Price Contact Now

RTL8723DS Bluetooth4.2 SDIO Combo Module 2.4GHz For Tablet PC



Product Overview

6223A-SRD is a small size and low profile of Wi-Fi + BT Combo module with LGA (Land-Grid Array) footprint, board size is 12mm*12mm with module thickness of 1.9mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides SDIO interface for Wi-Fi to connect with host processor and high speed UART interface for BT. It also has a PCM interface for audio data transmission with direct link to external audio codec via BT controller. The Wi-Fi throughput can go up to 150Mbps in theory by using 1x1 802.11n b/g/n MIMO technology and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2. 6223A-SRD uses highly integrated Wi-Fi/BT single chip based on advanced COMS process. 6223A-SRD integrates whole Wi-Fi/BT function blocks into a chip, such as SDIO/UART, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.

This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.



General Specification

Model Name

6223A-SRD

Product Description

Support Wi-Fi/Bluetooth functionalities

Dimension

L x W x H: 12 x 12 x1.8 (typical) mm

Wi-Fi Interface

Support SDIO V2.0

BT Interface

UART / PCM

Operating temperature

0°C to 70°C

Storage temperature

-40°C to 85°C

RoHS

All hardware components are fully compliant with EU RoHS directive

Recommended Operating Rating

The digital IO supports VDD33 or VDD18 application.



Min.

Typ.

Max.

Unit

Operating Temperature

0

25

70

deg.C

VCC33

3.15

3.3

3.45

V

VDDIO

1.7

1.8 or 3.3

3.45

V



Wi-Fi/BT RF Specification 2.1 2.4GHz RF Specification

Feature

Description

Operating Frequency

2.400~2.4835GHz

Spectrum Mask

Min. b/g/n

Typ. b/g/n

Max. b/g/n

Unit b/g/n

1st side lobes(to fc ± 11MHZ)

-

-42/-38/-32

-

dBr

2st side lobes(to fc ± 22MHZ)

-

-52/-60/-60

-

dBr

Freq. Tolerance

-20/-20/-20

-

20/20/20

ppm

Standards

Wi-Fi:
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i

BT:
V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.2

Modulation

Wi-Fi:
802.11b: CCK(11, 5.5Mbps),

BPSK(1Mbps),
802.11 g/n: OFDM

BT:
8DPSK, π/4 DQPSK, GFSK

QPSK(2Mbps),

PHY Data rates

Wi-Fi:
802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11n: up to 150Mbps

BT:
1 Mbps for Basic Rate
2,3 Mbps for Enhanced Data Rate

Transmit Output Power

Wi-Fi:
802.11b@11 Mbps 802.11g@54 Mbps 802.11n@65 Mbps

BT:
Max +10dBm

17±1.5dBm
14±1.5dBm 13±1.5dBm(MCS 7_HT20) 13±1.5dBm(MCS 7_HT40)

EVM

802.11b /1Mbps : EVM≦-10dB 802.11b /11Mbps : EVM≦-10dB 802.11g /6Mbps : EVM≦-5dB 802.11g /54Mbps : EVM≦-25dB 802.11n/6.5Mbps : EVM≦-5dB 802.11n/65Mbps : EVM≦-28dB 802.11n/13.5Mbps : EVM≦-5dB 802.11n/135Mbps : EVM≦-28dB

Receiver Sensitivity (Wi-Fi)

802.11b@8% PER
1Mbps ≦-91dBm
2Mbps≦ -89dBm
5.5Mbps≦ -87dBm
11Mbps ≦-85dBm Max input level≥-8

802.11g@10% PER 6Mbps ≦-87dBm 9Mbps ≦-86dBm 12Mbps≦ -84dBm 18Mbps≦ -82dBm 24Mbps≦ -79dBm 36Mbps≦ -75dBm 48Mbps ≦-71dBm 54Mbps ≦-70dBm

Max input level≥-20

802.11n@10% PER HT20_MCS 0 ≦-87dBm HT20_MCS 1≦ -84dBm HT20_MCS 2 ≦-82dBm HT20_MCS 3 ≦-79dBm HT20_MCS 4 ≦-75dBm HT20_MCS 5 ≦-71dBm HT20_MCS 6 ≦-70dBm HT20_MCS 7 ≦-69dBm Max input level≥-20

HT40_MCS 0≦-84 HT40_MCS 1≦-81 HT40_MCS 2≦-79 HT40_MCS 3≦-76 HT40_MCS 4≦-72 HT40_MCS 5≦-68 HT40_MCS 6≦-67 HT40_MCS 7≦-66

Receiver Sensitivity (BT)

-89dBm @ 1Mbps -86dBm @ 2Mbps -83dBm @ 3Mbps

Operating Channel

Wi-Fi 2.4GHz:
11: (Ch. 1-11) – United States

13: (Ch. 1-13) – Europe

FN-LINK TECHNOLOGY LIMITED 4 Proprietary & Confidential Information

6223A-SRD



14: (Ch. 1-14) – Japan BT 2.4GHz: Ch. 0 ~78

Media Access Control

Wi-Fi: CSMA/CA with ACK BT: AFH, Time Division

Antenna

External Antenna

Network Architecture

Wi-Fi: Ad-hoc mode (Peer-to-Peer ) Infrastructure mode

Software AP

Wi-Fi Direct
BT: Pico Net, Scatter Net

Security

Wi-Fi: WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE 802.11x, IEEE 802.11i

BT: Simple Paring

OS Supported

Android /Linux

Host Interface

Wi-Fi: SDIO BT: UART

Operating Voltage

3.3±10% Vdc I/O supply voltage

Dimension

Typical L12.0*W12.0*H1.8mm
