Android Tablet PC SDIO WiFi Bluetooth Module 2.4GHz 150Mbps With RTL8723DS

Android Tablet PC SDIO WiFi Bluetooth Module 2.4GHz 150Mbps With RTL8723DS

  • High Light

    2.4GHz 150Mbps WiFi Bluetooth Module

    ,

    OEM Wifi And Bluetooth Module

    ,

    Realtek RTL8723DS WiFi BT Module

  • Type
    WiFi BT Module
  • Main Chip
    Realtek RTL8723DS
  • Throughput
    150Mbps
  • Bandwidth
    HT20/HT40
  • Interface
    SDIO/Uart
  • Feature
    Ultra-Small Size
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6223A-SRD-W4
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.3-4.2/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Android Tablet PC SDIO WiFi Bluetooth Module 2.4GHz 150Mbps With RTL8723DS

2.4GHz Android Tablet PC SDIO WiFi BT Module With RTL8723DS WiFi Bluetooth Chip



Overview

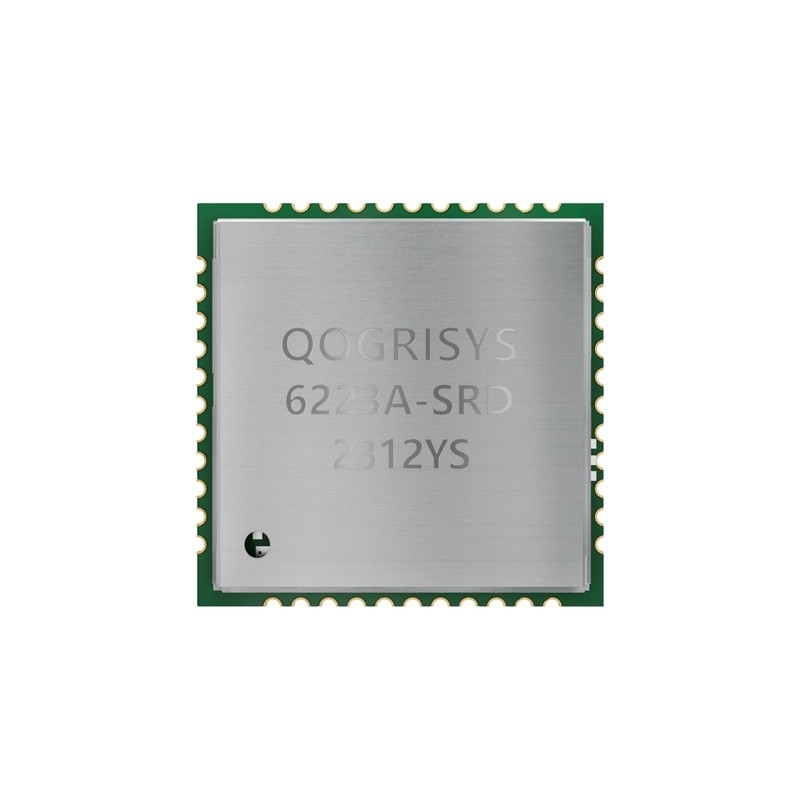

6223A-SRD is a single band 2.4G WiFi module with integated Bluetooth 4.2,specifically designed for highly integrated and cost effective applications.The simultaneous and independent operation of the two standards enables high data rates (802.11n) and low-power operation (Bluetooth Low Energy).



Features

·Ultra-Small Size

·IEE802.11b/g/n Single Band WiFi

·20/40MHz chanel bandwidth

·High speed data rate up to 150Mbps

·Support for AP,STA,AP/STA Mode, WiFi Direct Mode

·SDIO can operate at 1.8V/3.3V

·Drivers available for Linux/Android/Windows

·Bluetooth 4.2 dual mode

·Compact robust design for easy integration

·Consumer grade operating temperature range(0°C-70°C)

Specifications

Model Name WiFi Bluetooth Module
Interface SDIO/Uart
Application Android Tablet PC/Smart WiFi Speaker
Spec IEEE802.11n WiFi&BT4.2+BLE Combo
1xTransmit&1xReceive Path on 2.4GHz
Short Guard Interval(400ns)
Single Power Supply 3.3V
Maximum Transmit Power Up To 17dBm
Demensions L12.0*W12.0*T2.1mm

Support


Data sheet is available on our website, as well as the driver, which is supported for free after you order the samples.

Also,welcome to visit our website to learn more about wifi bt module.



Our Services

OEM&ODM(WiFi BT Module).

We can make standard gear/ special gear /Turbine Worm/Gear Rack as per drawing or sample. The gear material can be carbon steel,
stainless steel, aluminum, copper, brass and so on. Let us know your requirements today.





FAQ

1. What can you supply?
A: We can supply custom WiFi BT Module,USB WiFi Module etc.



2. Are OEM and ODM available?

* Yes, they are. As a professional WiFi BT Module manufacturer, we offer OEM and ODM service.



3. How about your product warranty?

* We offer one-year warranty upon delivery.



4. How about the aftersales support?

* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
