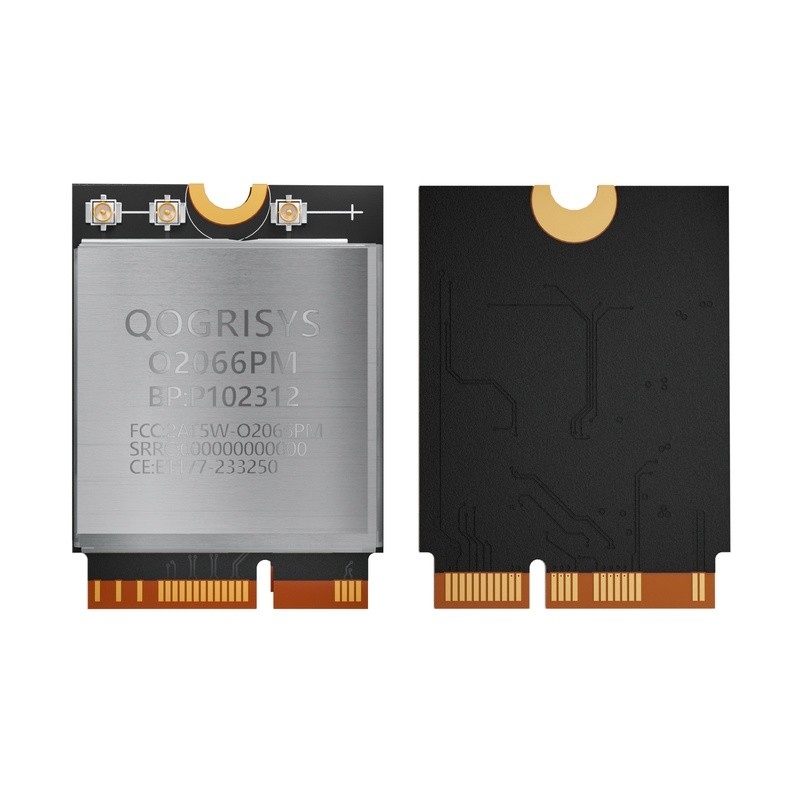

Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated

Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated

Products - WiFi BT Module
  • High Light

    Highly Integrated Wifi 6 Module For Pc

    ,

    Dual Band Simultaneous Wifi6 Module

    ,

    REACH Approved Wifi 6 Laptop Module

  • Name
    Wifi 6 Module
  • Form Factors
    M.2 2230
  • Wireless Protocol
    802.11a/b/g/n/ac/ax
  • Bluetooth Data Rate
    2 Mbps EDR
  • Bluetooth
    Bluetooth V5.2, V5.1, V5.0, V4.2,etc.
  • D/C
    2022
  • Place of Origin
    China
  • Brand Name
    Oflycomm
  • Certification
    ROHS/REACH
  • Model Number
    O2064PM
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 21.5-28
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated

  • Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated
Get Price Contact Now

New Orginal Wifi 6 Module With Highly integrated System-On-Chip QCA2064 Support Dual Band Simultaneous
wifi module is a very high performance module that includes 2.4GHz WLAN and Bluetooth functionality for consumer grade applications. Based on RTL8723BU, the module provides IEEE 802.11b/g/n(1x1) and Bluetooth 4.0+EDR.

Radio Of Wifi 6 Q206X Module
Antenna:3x IPEX MHF4 connectors

Operating Frequency:

                                   802.11ax/ac/a/b/g/n ISM Band
                                   2.400GHz~2.4835GHz
                                   5.515GHz~5.845GHz

Current Consumption Measurement For Real Work Mode

Test Mode

Current Value @3.3Vdc






2G TX (Chain Mask 2x2)

6M@ 495mA

54M@275mA

HE20 MCS0@497mA

HE40 MCS11@441mA

HT20 MCS10@489mA




5G TX

(Chain Mask 2x2)

54M @275mA

HT20 MCS0@551mA

HE20 MCS0@564mA

HE160 MCS0@617mA

HE160 MCS11@554mA

2G RX (Chain Mask 2x2)

Max 147mA

5G RX (Chain Mask 2x2)

Max 211mA

Power Up

118mA



1M @7dBm 147mA

BT RX

Max 136mA

Pack Inform


Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated 0

Tray
Layer size: L300.0*W240.0 mm
Layer material: PVC
Carton size: L310.0*W260.0*H220.0 mm
Carton material: A=A
More 802.11AX Wifi Modules For Reference

Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated 1.           Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated 2Wifi 6 Laptop Module Support Dual Band Simultaneous Highly Integrated 3


Application Of WiFi BT Module
Smart TV/IPTV/OTT Set Top Box wireless HD video transmission and high speed transmission of big data.


  1. OTT/IPTV/DVB/STB

  2. Tablet PC

  3. Laptop,Smart TV,IPC/NCR,

DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Our Services
OEM&ODM(WiFi BT Module).
We can make standard gear/ special gear /Turbine Worm/Gear Rack as per drawing or sample. The gear material can be carbon steel,
stainless steel, aluminum, copper, brass and so on. Let us know your requirements today.
