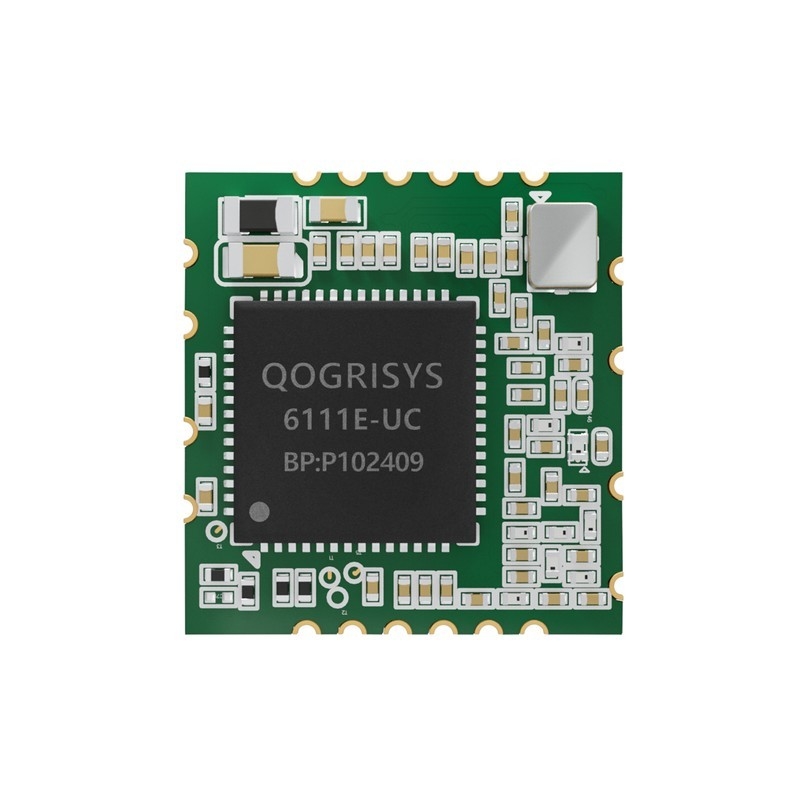

SDIO3.0 UART Interface Dual Band 433Mbps Wifi Adapter Module

SDIO3.0 UART Interface Dual Band 433Mbps Wifi Adapter Module

  • High Light

    data transmission module

    ,

    wifi transceiver module

  • Major Chip
    RTL8821CS
  • Wifi Port
    SDIO3.0
  • Ble Port
    Uart
  • Speed
    433Mbps
  • Mass Production
    Already
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    6221A-SRC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 4.2-6.8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

SDIO3.0 UART Interface Dual Band 433Mbps Wifi Adapter Module

High Quality 5Ghz WiFi Module SDIO3.0/UART Interface Dual Band Wifi Adapter Module

High-speed WiFi module in LGA package. It is purchased with the  RTL8821CS module and is compliant with the IEEE 802.11a/b/g/n/ac standard. The operating mode can be switched between 2.4G and 5.8G dual frequency.



This 5Ghz Wifi Module is Designed For

This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.such as desktop computer ,laptop netbook ,MID tablet ,digital photo frame network TV, set-top box etc...



Power Comsumption Of 6221A-SRC

Power Consumption   VCC33 = 3.3V(Unit:mA)
Wi-Fi on Mode 68
TX (2.4G HT20) 217
RX (2.4G HT20) 108
TX (5G HT40) 252
RX (5G HT40) 115
BT on 19





EEPROM Information

SDIO3.0 UART Interface Dual Band 433Mbps Wifi Adapter Module 0





Pin Distribution
SDIO3.0 UART Interface Dual Band 433Mbps Wifi Adapter Module 1
