802.11b / G / N USB WiFi Module Shield  Ultra Low Power Wifi Module

802.11b / G / N USB WiFi Module Shield Ultra Low Power Wifi Module

  • High Light

    usb wifi bluetooth module


    wifi camera module

  • Chipset
  • WIFI Standard
  • Interface
  • Size
  • Antenna
    External Antenna
  • Type
    USB WiFi Module
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    USD 2.2-4/pcs
  • Packaging Details
  • Delivery Time
    15-40 workdays
  • Payment Terms
  • Supply Ability

802.11b / G / N USB WiFi Module Shield Ultra Low Power Wifi Module

Shield 802.11b/g/n USB WiFi Module For Wireless Data Collection


USB WiFi Module Introduction

Type 6223E-UUD-W3 usb wifi  module is a very high performance module that includes 2.4GHz WLAN and Bluetooth functionality for consumer grade applications. Based on RTL8723DU, the module provides IEEE 802.11b/g/n (1x1) and Bluetooth 4.2+EDR.

USB WiFi Module Detailed Parameters

Model No 6223E-UUD-W3 Main Chipset RTL8723DU
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Windows/Linux/Android
Frequency 2.4GHz Power Supply 3.3V
Size 12.2x13.0x1.9mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 125°C

USB WiFi Module Features

Operate at ISM frequency bands(2.4GHz)

USB for WiFi and Bluetooth

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE802.11e, IEEE802.11h,IEEE802.11i

Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode

Fully qualified for Bluetooth 3.0

Fully qualified for Bluetooth 4.2 Dual mode

Full–speed Bluetooth operation with Piconet and Scatternet support

Enterprise level security which can apply WPA/WPA2 certification for WiFi

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150Mbps upstream PHY rates

USB WiFi Module Application Range

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Please engage with our sales team to determine if this module is suitable for your applications. Regarding sample request,please inform us the details of your project, thanks for your support.

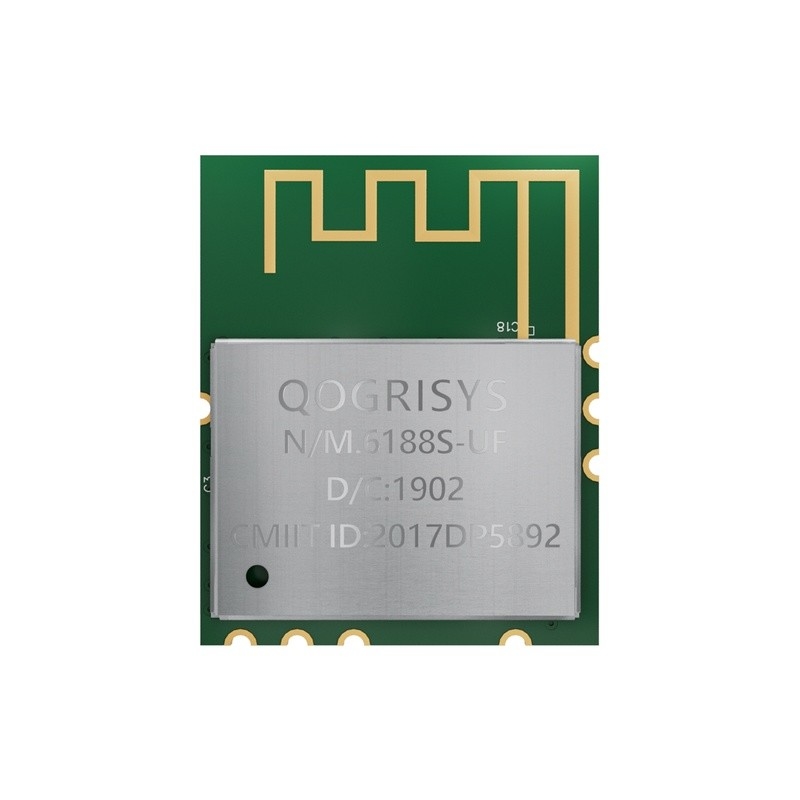

802.11b / G / N USB WiFi Module Shield  Ultra Low Power Wifi Module 0
