Dual Band RTL8821CU WiFi Bluetooth Chip USB WiFi Module For Tablet PC

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: CE/ROHS/REACH

Model Number: 6221E-UUC

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 3.3-5.5/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

usb wifi bluetooth module

,

802.11 ac wifi module

Chipset:
RTL8821CS
Frequency:
2.4GHz/5.8GHz
Size:
13.0x12.2x1.7mm
Data Rate:
433Mbps
Power Supply:
3.3V
Type:
USB WiFi Module
Chipset:
RTL8821CS
Frequency:
2.4GHz/5.8GHz
Size:
13.0x12.2x1.7mm
Data Rate:
433Mbps
Power Supply:
3.3V
Type:
USB WiFi Module
Dual Band RTL8821CU WiFi Bluetooth Chip USB WiFi Module For Tablet PC

Dual Band RTL8821CU WiFi Bluetooth Chip USB WiFi Module For Tablet PC



USB WiFi Module Introduction

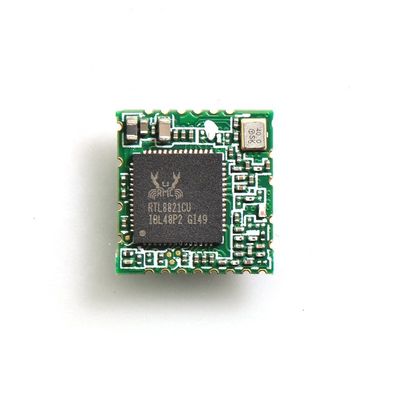

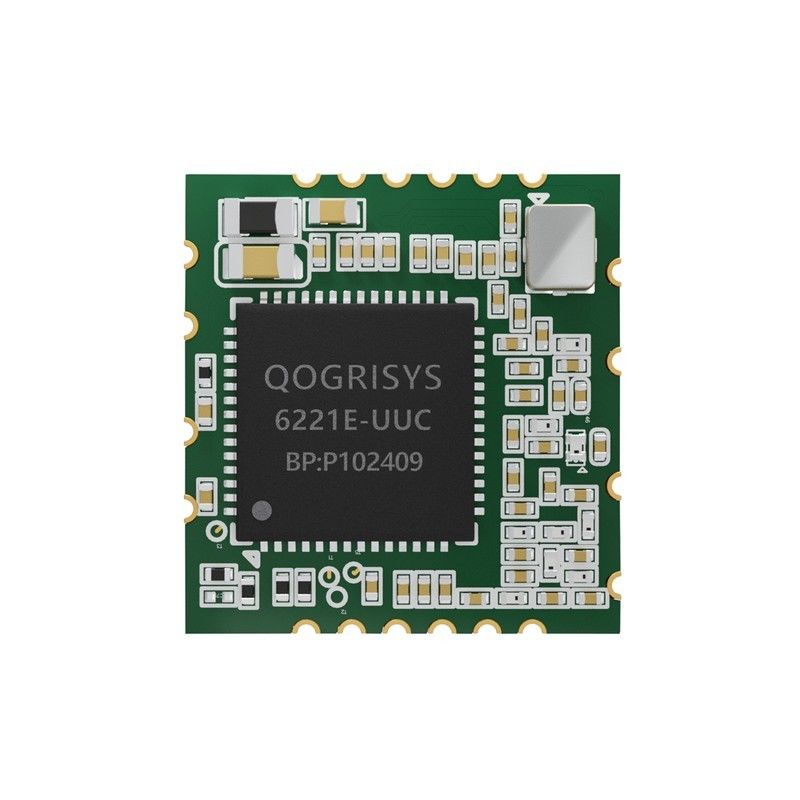

6221E-UUC usb wifi module is based on Realtek RTL8821CU chip which supports 802.11ac+BLE4.2. It is a usb wifi module with single external antenna.

USB WiFi Module Detailed Parameters

Model No 6221E-UUC Main Chipset RTL8821CU
Interface USB WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Windows/Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 13.0x12.2x1.7mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -55° C to 85°C


USB WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports USB interface for WLAN and Bluetooth.

Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

USB WiFi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
