RTL8723DS SDIO 2.4 Ghz Rf Realtek Wifi Module For Android Tablet

RTL8723DS SDIO 2.4 Ghz Rf Realtek Wifi Module For Android Tablet

  • High Light

    Android Tablet Wifi Bt Combo Module


    2.4 Ghz Realtek Wifi Module


    Rf Realtek Wifi Module

  • Chipset
  • WIFI Standard
  • Frequency
  • Interface
  • OS Support
    Windows/Android /Linux
  • Security
  • Size
  • Application
    Tablet PC
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    USD 2.3-4.2/pcs
  • Packaging Details
  • Delivery Time
    15-40 workdays
  • Payment Terms
  • Supply Ability

RTL8723DS SDIO 2.4 Ghz Rf Realtek Wifi Module For Android Tablet

RTL8723DS SDIO 2.4 Ghz Rf Module Realtek Wifi Module For Android Tablet



WiFi BT Module Introduction

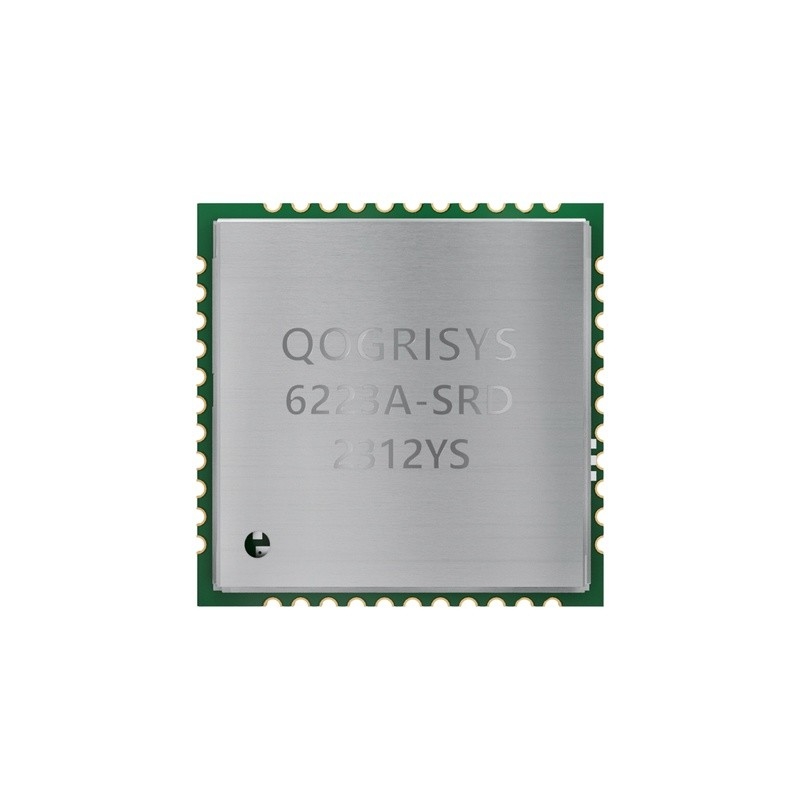

6223A-SRD is a small size and low profile of WiFi +BT Combo module,board size is 12.2mm*13mm with module thickness of 1.7mm.It can be easily manufactured on SMT process and highly suitable for tablet PC,ultra book, mobile device and consumer products.It provides SDIO interface for WiFi and Uart for Bluetooth. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11n MIMO technology and Bluetooth can suppor BT2.1+EDR/BT3.0 and BT4.2.

6223A-SRD uses highly integrated WiFi/BT single chip based on advanced COMS process. It integrates whole WiFi/BT function blocks into a chip,such as SDIO/Uart, MAC, BB,AFE,RFE, PA, EEP ROM and LDO/SWR, except fewer passive components remained on PCB.

This compact module is a total solution for a combination of WiFi + BT technologies. The module is specifically developed for Smart phones and Portable devices.


WiFi BT Module Detailed Parameters

Model No 6223A-SRD Main Chipset RTL8723DS
Interface SDIO/Uart WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Windows/Linux/Android
Frequency 2.4GHz Power Supply 3.3V
Size 12.0x12.0x1.8mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 125°C



WiFi BT Module Features

Operate at ISM frequency bands(2.4GHz)

SDIO for WiFi and Uart for Bluetooth

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE802.11e, IEEE802.11h,IEEE802.11i

Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode

Fully qualified for Bluetooth 3.0

Fully qualified for Bluetooth 4.2 Dual mode

Full–speed Bluetooth operation with Piconet and Scatternet support

Enterprise level security which can apply WPA/WPA2 certification for WiFi

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150Mbps upstream PHY rates



WiFi BT Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.Skype:+8618280383459

RTL8723DS SDIO 2.4 Ghz Rf Realtek Wifi Module For Android Tablet 0
