Dual Band SDIO WiFi BT Module 5G Qaulcomm QCA1023 For Set Top Box

Dual Band SDIO WiFi BT Module 5G Qaulcomm QCA1023 For Set Top Box

  • High Light

    Set Top Box WiFi BT Module

    ,

    5G Qaulcomm Wifi Bluetooth Module

    ,

    Dual Band SDIO WiFi BT Module

  • Chipset
    QCA1023
  • WIFI Standard
    IEEE802.11a/b/g/n/ac
  • Frequency
    2.4GHz/5.8GHz
  • Interface
    SDIO/Uart/PCM
  • OS Support
    Android /Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    12.0x12.0x1.7mm
  • Application
    IPTV/OTT Set Top Box
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/IC/TELEC/ROHS/REACH
  • Model Number
    8223A-SR
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 4-6.8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Dual Band SDIO WiFi BT Module 5G Qaulcomm QCA1023 For Set Top Box

Dual Band 5G Qaulcomm QCA1023 SDIO WiFi BT Module For Set Top Box

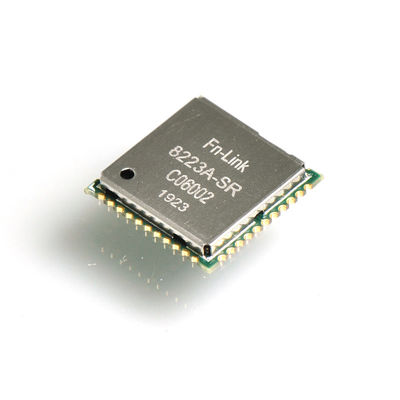

WiFi BT Module Introduction

8223A-SR complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN. It provides SDIO interface for Wi-Fi,UART / PCM interface for Bluetooth.



WiFi BT Module Detailed Parameters

Model No 8223A-SR Main Chipset QCA1023
Interface SDIO/Uart/PCM WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 12.0x12.0x1.7mm RF Chain 1T1R
Operating Temperature -30° Cto 85°C Storage Temperature

-40° Cto 125°C



WiFi BT Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data



WiFi BT Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products



Note

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
