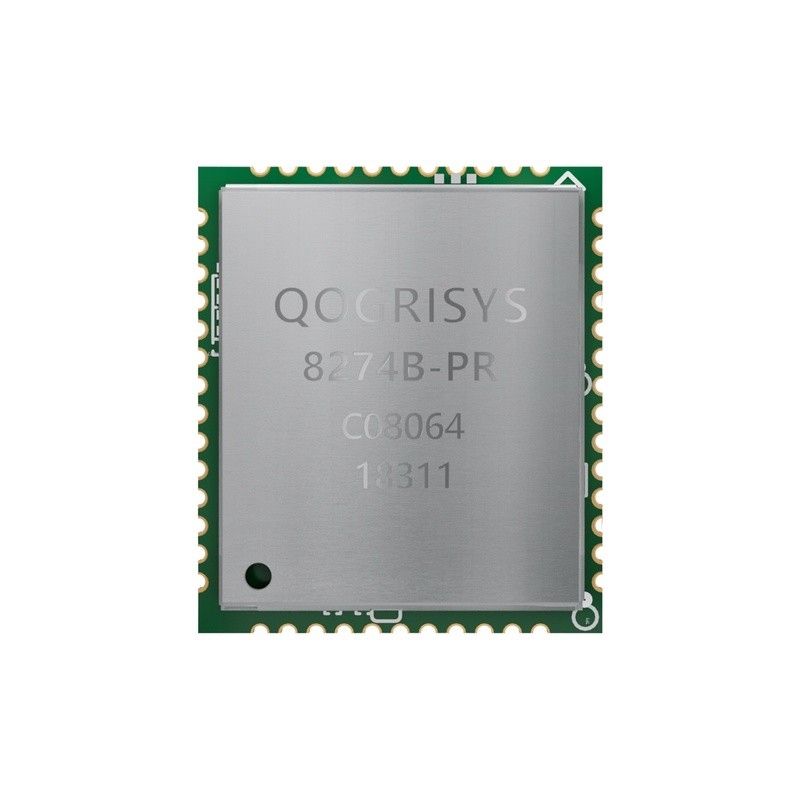

Mini Dual Band WiFi BT Module 5GHz QCA6174 PCIe Wireless Bluetooth Module

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: CE/SRRC/ROHS/REACH

Model Number: 8274B-PR

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 5.9-8/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

5GHz PCIe Wireless Bluetooth Module

,

QCA6174 WiFi BT Module

,

Mini Dual Band WiFi BT Module

Chipset:
QCA6174
WIFI Standard:
IEEE802.11a/b/g/n/ac
Frequency:
2.4GHz/5.8GHz
Interface:
PCIe/Uart
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
15.0x13.0x1.9mm
Application:
Tablet PC/Laptop
Chipset:
QCA6174
WIFI Standard:
IEEE802.11a/b/g/n/ac
Frequency:
2.4GHz/5.8GHz
Interface:
PCIe/Uart
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
15.0x13.0x1.9mm
Application:
Tablet PC/Laptop
Mini Dual Band WiFi BT Module 5GHz QCA6174 PCIe Wireless Bluetooth Module

Mini Size Dual Band 5GHz QCA6174 PCIe Wireless WiFi BT Module For Laptop



WiFi BT Module Introduction

8274B-PR is a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors'802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN.The integrated module provides PCI-e interface for WiFi, UART / PCM interface for Bluetooth.

This compact module is a total solution for a combination of WiFi and Bluetooth V4.2 technologies. The module is specifically developed for all portable devices.



WiFi BT Module Detailed Parameters

Model No 8274B-PR Main Chipset QCA6174
Interface PCIe/Uart WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 867Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 15.0x13.0x1.9mm RF Chain 2T2R
Operating Temperature -30° C to 85°C Storage Temperature -40° C to 125°C



WiFi BT Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power PCI-e interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data



WiFi BT Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products



Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
