Home > products > WiFi BT Module > Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt

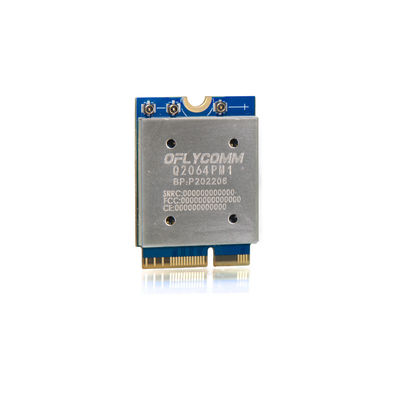

Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: O2064PM

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 21.5-28

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

QCA206x Wifi 6 Module

,

Openwrt Wifi 6 Module

,

1800Mbps wireless access point module

Chipset:
QCA2064
Form Factors:
M.2 2230
Wireless Protocol:
802.11a/b/g/n/ac/ax
Bluetooth Protocol:
Bluetooth5.2
Bluetooth Data Rate:
2 Mbps EDR
Clsss:
Class 2, Class 1
Chipset:
QCA2064
Form Factors:
M.2 2230
Wireless Protocol:
802.11a/b/g/n/ac/ax
Bluetooth Protocol:
Bluetooth5.2
Bluetooth Data Rate:
2 Mbps EDR
Clsss:
Class 2, Class 1
Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt

Highly Integrated QCA206x Serials Wifi 6 Wireless Access Point 1800Mbps Module For Openwrt



The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard and it can achieve up to a speed of 1.8Gbps (2x2 80MHz 11ax + 2x2 40MHz 11ax DBS). The integrated module provides PCIe interface for Wi-Fi, UART/PCM interface for Bluetooth.



Certifications In The Future

Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt 0


Current Consumption Measurement For Real Work Mode

Test Mode Current Value @3.3Vdc









2G TX (Chain Mask 2x2)

6M@ 495mA
54M@275mA
HE20 MCS0@497mA
HE40 MCS11@441mA
HT20 MCS10@489mA





5G TX

(Chain Mask 2x2)

54M @275mA
HT20 MCS0@551mA
HE20 MCS0@564mA
HE160 MCS0@617mA
HE160 MCS11@554mA
2G RX (Chain Mask 2x2) Max 147mA
5G RX (Chain Mask 2x2) Max 211mA
Power Up 118mA
  1M @7dBm 147mA
BT RX Max 136mA

Reference Design



Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt 1

Note:

a) C247, C251 should be closed to host.

b) PCIe differential signals should be followed 90 Ohm impedance.

c) For the I/O interface voltage, please refer to chapter 5 pin definition.

d) For the 1.8V interface, such as PCM, UART and some I/O, if the host voltage level is 3.3V or 5V, need to add level shift circuit.


More 802.11AX Wifi Modules For Reference



Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt 2.           Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt 3Highly Integrated QCA206x Wifi 6 Module 1800Mbps Wireless Access Point Module For Openwrt 4
