Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: CE/FCC/SRRC/IC/TELEC/ROHS/REACH
Model Number: 8223A-SR
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 4-6.8/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Chipset: |
QCA1023 |
WIFI Standard: |
IEEE802.11a/b/g/n/ac |
Frequency: |
2.4GHz/5.8GHz |
Interface: |
SDIO/Uart/PCM |
OS Support: |
Android /Linux |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
12.0x12.0x1.7mm |
Application: |
IPTV/OTT Set Top Box |
Chipset: |
QCA1023 |
WIFI Standard: |
IEEE802.11a/b/g/n/ac |
Frequency: |
2.4GHz/5.8GHz |
Interface: |
SDIO/Uart/PCM |
OS Support: |
Android /Linux |
Security: |
WEP,TKIP,AES,WPA,WPA2 |
Size: |
12.0x12.0x1.7mm |
Application: |
IPTV/OTT Set Top Box |

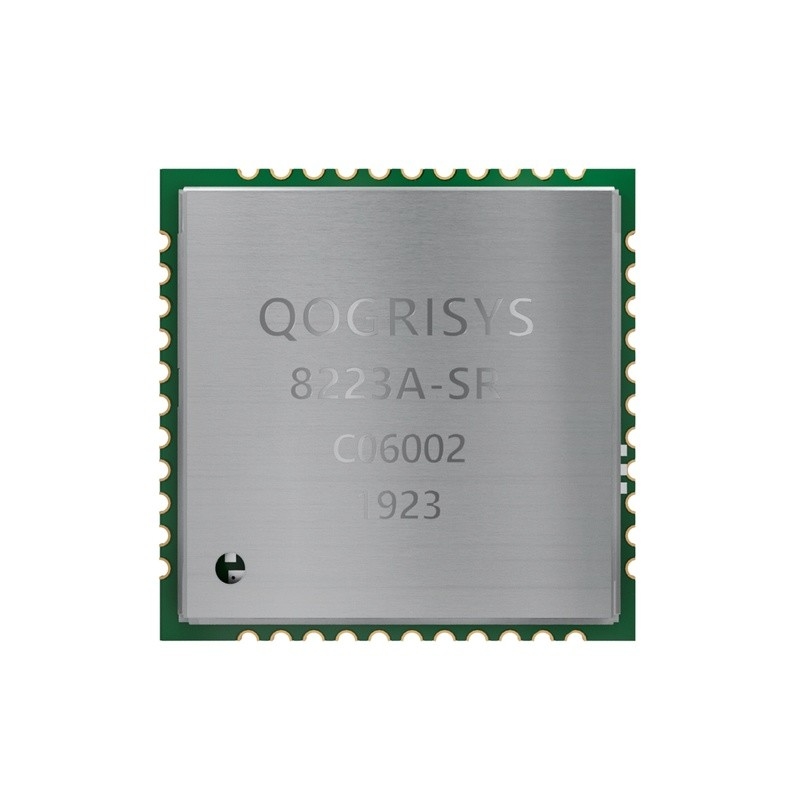

Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi, Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac Access Points in the wireless LAN.
Application
This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.
General Speciafication
|
Model Name |
8223A-SR |
|
Product Description |
Support WiFi/Bluetooth functionalities |
|
Dimension |
L x W x H: 12 x 12 x 1.8 (typical) mm |
|
WiFi Interface |
Support SDIO V3.0 |
|
BT Interface |
UART / PCM |
|
Operating temperature |
-30°C to 85°C |
|
Storage temperature |
-40°C to 125°C |
Recommeded Operating Rating
|
Min. |
Typ. |
Max. |
Unit |
|
|
Operating Temperature |
-30 |
25 |
85 |
deg.C |
|
VCC33 |
3.15 |
3.3 |
3.45 |
V |
|
VDDIO |
1.7 |
1.8 or 3.3 |
3.45 |
V |
SDIO Pin Description
The module supports SDIO version 3.0 for all 1.8V 4-bit UHSI speeds: SDR50(100 Mbps),SDR104(208MHz) and DDR50(50MHz, dual rates) in addition to the 3.3V default speed(25MHz) and high speed (50 MHz). It has the ability to stop the SDIO clock and map the interrupt signal into a GPIO pin. This ‘out-of-band’ interrupt signal notifies the host when the WLAN device wants to turn on the SDIO interface. The ability to force the control of the gated clocks from within the WLAN chip is also provided.
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
