Place of Origin: | China |
---|---|
Brand Name: | FN-LINK |
Certification: | ROHS/REACH |
Model Number: | 3161A-SL |
Minimum Order Quantity: | 5/pcs |
Price: | USD 2-3/pcs |
Packaging Details: | Reel |
Delivery Time: | 15-40 workdays |
Payment Terms: | T/T |
Supply Ability: | 4000000pcs/month |
Model Name: | 3161A-SL | Media Access Control: | Wi-Fi: CSMA/CA With ACK |
---|---|---|---|
Operating Voltage: | 2.3-3.6V Vdc, 1.8V/3.3V I/O Supply Voltage | OS Supported: | LiteOS/Linux |
Security: | WFA WPA, WFA WPA2 Personal, And WPS2.0 | Pin Foot: | 44 |
High Light: | wifi bt combo module,wifi low energy module |

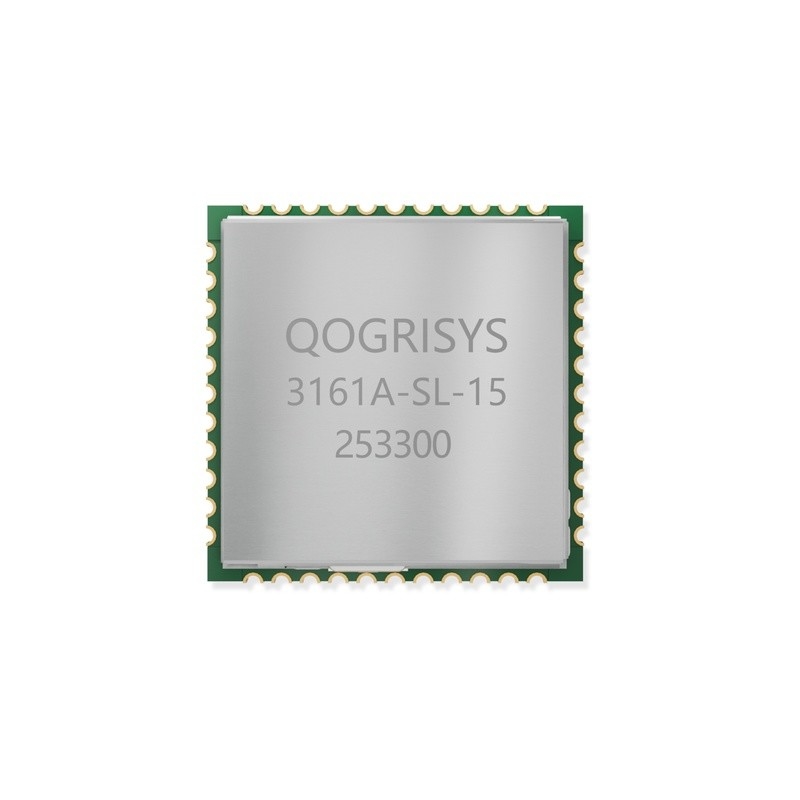

3161A-SL is a highly integrated 2.4 GHz Wi-Fi module that support the IEEE 802.11b/g/n baseband and RF circuit,its
maximum rate is 72.2 Mbit/s@HT20 MCS7.SDIO interface for Wi-Fi.
Low power dissipation
High transmitting power
High receiving sensitivity
PHY supporting IEEE 802.11b/g/n
MAC supporting IEEE802.11 d/e/h/i/k/v/w
Module integrated 32K clock
WFA WPA, WFA WPA2 personal, and WPS2.0 for Wi-Fi Built-in 352 KB SRAM and 288 KB ROM
Main chipset Built-in 32bit MCU and 2 MB flash memory
Transmit Output Power |
Wi-Fi: 802.11b@11Mbps 16±1.5dBm 802.11g@54Mbps 16±1.5dBm 802.11n@MCS7 16±1.5dBm |
PHY Data rates |
Wi-Fi: 802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11n: up to 72.2Mbps |
