Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: FCC/CE/SRRC/ROHS/REACH
Model Number: F89FTSM13-W3
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 1.3-2.2/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Frequecy Range: |
2.400～2.4835GHz |
Antenna: |
External Antenna |
Wifi Port: |
SDIO/GPIO |
Bandwidth: |
HT20/HT40 |
Size: |
L12.0*W12. 0*H1.8mm |
Enterprise Level Security: |
WPA/WPA2 |
Frequecy Range: |
2.400～2.4835GHz |
Antenna: |
External Antenna |
Wifi Port: |
SDIO/GPIO |
Bandwidth: |
HT20/HT40 |
Size: |
L12.0*W12. 0*H1.8mm |
Enterprise Level Security: |
WPA/WPA2 |

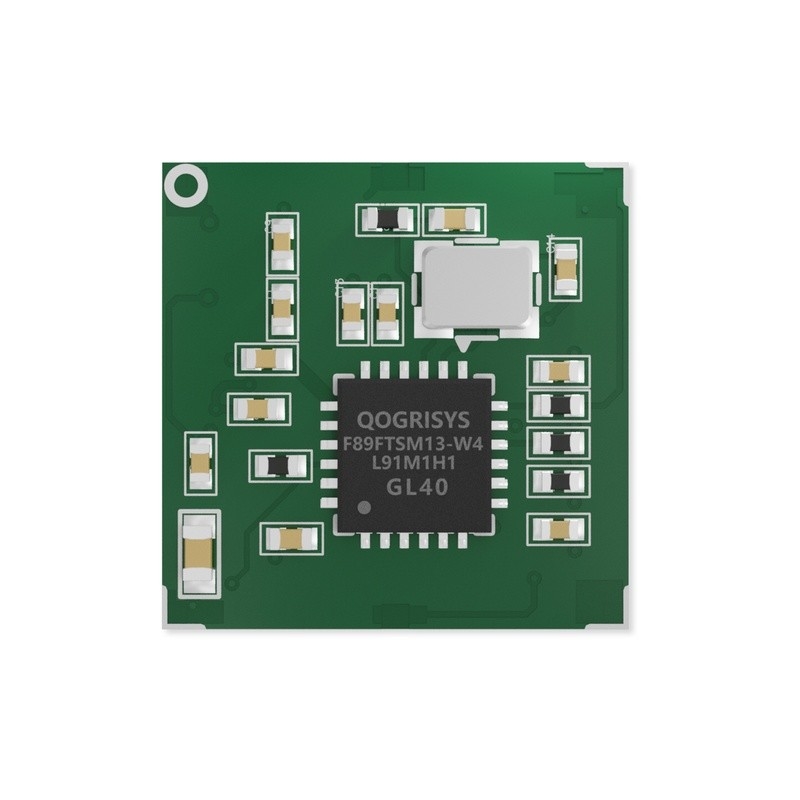

RTL8189FTV module product is wireless USB adapter which has lower power consumption, high linearity output power, accords with IEEE802.11B/G/N, and supports IEEE802.11i safety protocol, along with IEEE 802.11e standard service quality.High speed wireless connection up to 150Mbps
| Main Chipset |
RTL8189FTV |
| Modulation |
WiFi: 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps), 802.11 g/n: OFDM |
| PHY Data rates |
WiFi: 802.11b: 11,5.5,2,1 Mbps |
| Transmit Output Power (Tolerance: ±2.0dBm) |
WiFi: 802.11b@11Mbps 18dBm 802.11g@6Mbps 15dBm 802.11g@54Mbps 15dBm 14dBm (MCS 7_HT20) 13dBm (MCS 0_HT40) 13dBm (MCS 7_HT40) |
| Receiver Sensitivity |
802.11b@11Mbps -82±1dBm 802.11g@54Mbps -71±1dBm 802.11n -67±1dBm (MCS 7_HT20) -64±1dBm (MCS 7_HT40) |
Physical Dimensions(Unit:mm)
Power Consumption
| Mode | Status | Power(mA) | Note |
| OS Windows XP | Link | 130 | |
| RX | 130 | 20M | |
| TX | 190 | 20M(MCS7) | |
| 175 | 40M(MCS7) |
