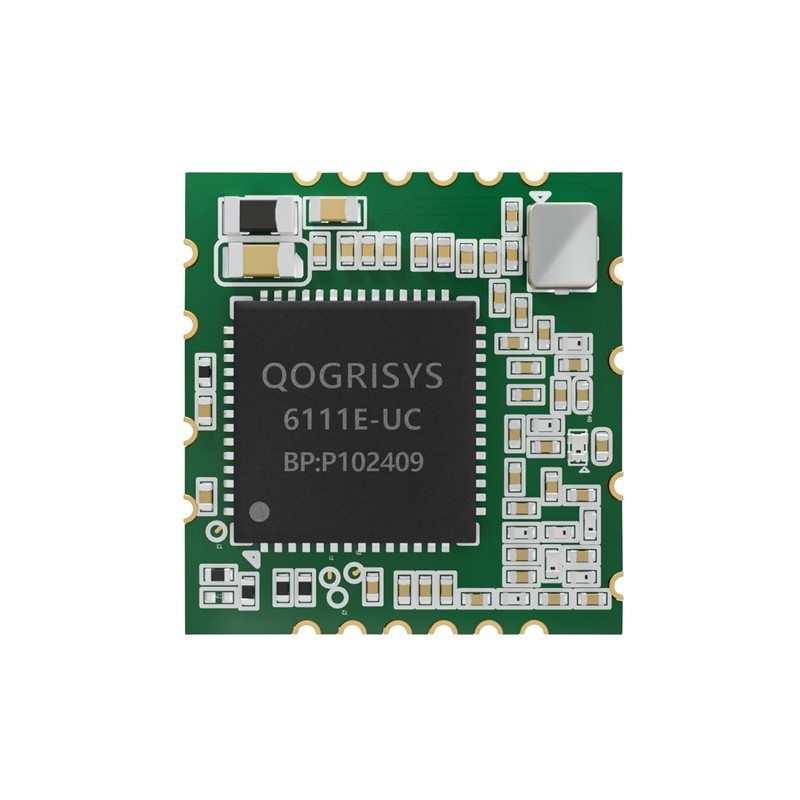

Networking Equipment RTL8821CS 1X1 MIMO Remote Control Module

Networking Equipment RTL8821CS 1X1 MIMO Remote Control Module

  • High Light

    wifi bt combo module

    ,

    wifi low energy module

  • Wifi Standard
    802.11ac
  • Bluetooth Standard
    Bluetooth V4.2 Of 1, 2 And 3 Mbps.
  • Antenna Reference
    Small Antennas With 0~2 DBi Peak Gain
  • RoHS
    Yes
  • Origin
    GuangDong,China
  • Color
    Green
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    6221A-SRC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 4.2-6.8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Networking Equipment RTL8821CS 1X1 MIMO Remote Control Module

SDIO WiFi Module 1X1 MIMO Remote Control Module RTL8821CS Wireless Networking Equipment



High-speed WiFi module in LGA package. It is purchased with the  RTL8821CS module and is compliant with the IEEE 802.11a/b/g/n/ac standard. The operating mode can be switched between 2.4G and 5.8G dual frequency.This wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN. The integrated module provides SDIO interface for Wi-Fi, UART / PCM interface for Bluetooth.



Introduction

1.Bandwidth:2.4G supports HT20/40,5G supports HT20/40/80

2.Host interface:SDIO3.0 for Wlan;Uart/PCM for Bluetooth

3.Wlan-Bluetooth coexistence is supported



  Min. Typ. Max. Unit
Operating Temperature 0 25 70 deg.C
VCC33 3.0 3.3 3.6 V
VDDIO 1.7 1.8 or 3.3 3.6 V




Design Reference

Networking Equipment RTL8821CS 1X1 MIMO Remote Control Module 0

Ordering Information


Part No. Description
FG6221ASRC-00 RTL8821CS, a/b/g/n/ac, Wi-Fi+BLE4.2, 1T1R, 12X12mm, SDIO +Uart, PCB Version V1.0
