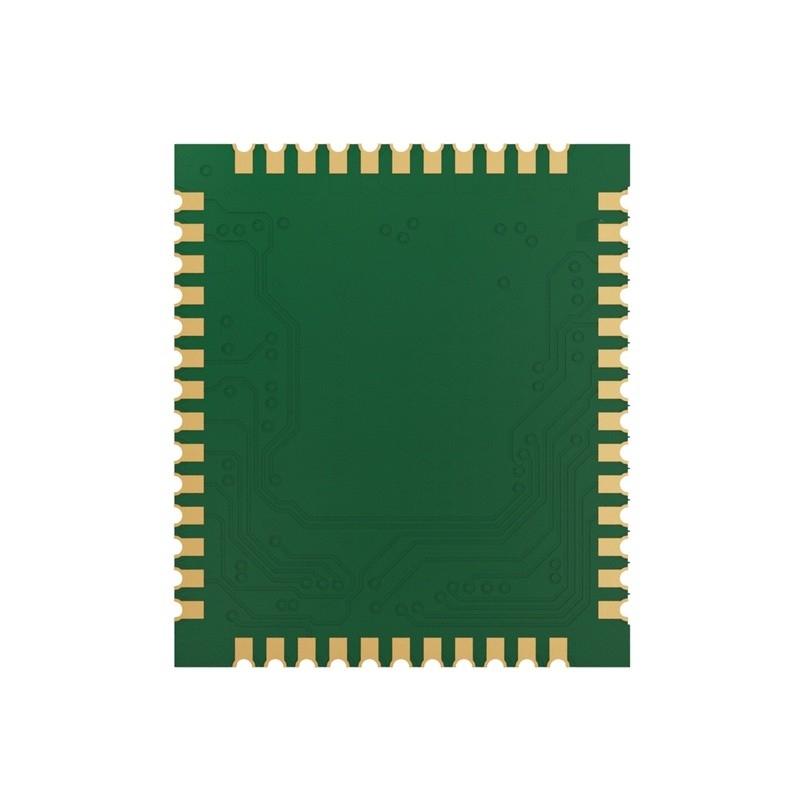

Stamp Holes Wireless Transceiver Module RTL8822CS 802.11ac Bluetooth For OTT/TV

Stamp Holes Wireless Transceiver Module RTL8822CS 802.11ac Bluetooth For OTT/TV

  • High Light

    wifi bt combo module

    ,

    wifi low energy module

    ,

    stamp holes wireless transceiver module

  • Chipset
    RTL8822CS
  • WIFI Standard
    IEEE802.11a/b/g/n/ac
  • Frequency
    2.4GHz ~5.8GHz
  • Interface
    SDIO/Uart/PCM
  • OS Support
    Windows/Android /Linux
  • Brand
    FN-LINK
  • Size
    15.0x13.0x1.8mm
  • Application
    Tablet/Smart TV/IPTV/OTT/IPC
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    6222B-SRC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 5.0-8.8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Stamp Holes Wireless Transceiver Module RTL8822CS 802.11ac Bluetooth For OTT/TV

Stamp Holes 802.11ac Dual-Band Module Of RTL8822CS 802.11ac+Bluetooth For OTT/TV


Introduction

6222B-SRC is a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides SDIO interface for Wi-Fi . The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. The integrated module provides SDIO interface for Wi-Fi, UART / PCM interface for Bluetooth.
This compact module is a total solution for a combination of Wi-Fi and Bluetooth V4.2 technologies. The module is specifically developed for all portable devices.

Features

  • Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
  • Dual-stream spatial multiplexing up to 867 Mbps data rate.
  • Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
  • Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
  • Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.
  • Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
  • Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
  • BT host digital interface:
    • HCI UART (up to 4 Mbps)
    • PCM for audio data


General Specification


Model Name

  6222B-SRC

Product Description

  Support Wi-Fi/Bluetooth functionalities

Dimension

L x W x H: 15 x 13 x 2.15 mm (typical)

Wi-Fi Interface

Support SDIO V3.0

BT Interface

  UART / PCM

Operating temperature

  0°C to 70°C

Storage temperature

  -40°C to 125°C



Recommended Operating Rating


 Min.Typ.Max.Unit

Operating Temperature

02570deg.C

VCC33

3.153.33.45V

VDDIO

1.71.8 or 3.33.45V




Block Diagram


 Stamp Holes Wireless Transceiver Module RTL8822CS 802.11ac Bluetooth For OTT/TV 0





Packaging

Stamp Holes Wireless Transceiver Module RTL8822CS 802.11ac Bluetooth For OTT/TV 1
