High Performance 5GHz WiFi Module 802.11ac  RTL8822CS For Android Tablet

High Performance 5GHz WiFi Module 802.11ac RTL8822CS For Android Tablet

  • High Light

    qualcomm wifi module

    ,

    wifi transceiver module

  • Chipset
    RTL8822CS
  • Frequency
    2.4GHz/5.8GHz
  • Size
    15.0x13.0x2.15mm
  • Data Rate
    867Mbps
  • Power Supply
    3.3V
  • Type
    5GHz WiFi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    6222B-SRC-00
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 5-8.8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

High Performance 5GHz WiFi Module 802.11ac RTL8822CS For Android Tablet

High Performance RTL8822CS 802.11ac SDIO 5GHz WiFi Module For Android Tablet



5GHz WiFi Module Introduction

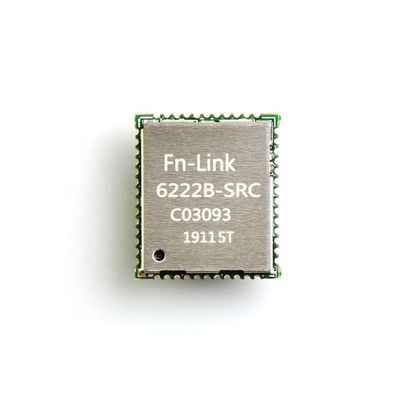

6222B-SRC 5ghz wifi module is based on Realtek RTL8822CS chip which supports 802.11a/b/g/n/ac+BLE4.2/5.0.It is a 5ghz wifi module with dual external antennas.

5GHz WiFi Module Detailed Parameters

Model No 6222B-SRC-00 Main Chipset RTL8822CS
Interface SDIO/Uart WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 867Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android/Windows
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 15.0x13.0x2.15mm RF Chain 2T2R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 85°C

5GHz WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data

5GHz WiFi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note


Welcome to visit our website to learn more about 5ghz wifi module.
