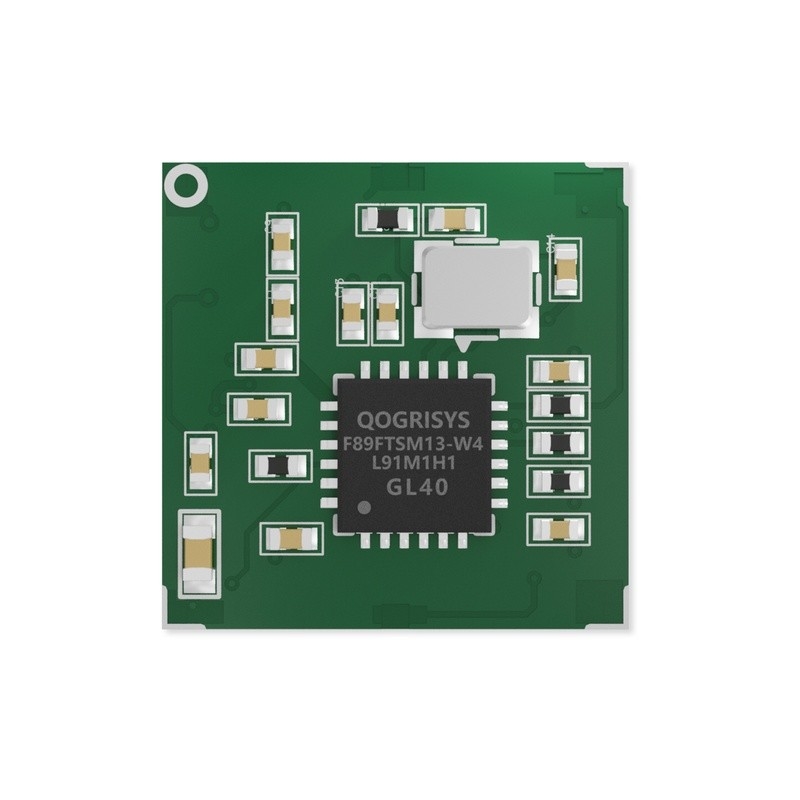

150Mbps Realtek Wifi Module RTL8189FTV 802.11 B Wifi Camera Module

Product Details

Place of Origin: China

Brand Name: QOGRISYS

Certification: ROHS/REACH

Model Number: F89FTSM13-W4

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 1.3-2.2/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

wifi bt combo module

,

high speed wifi module

Chipset:
RTL8189FTV
WIFI Standard:
IEEE802.11b/g/n
Frequency:
2.4GHz
Interface:
SDIO
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
12.0x12.0x1.6mm
Application:
Mini Car DVR
Chipset:
RTL8189FTV
WIFI Standard:
IEEE802.11b/g/n
Frequency:
2.4GHz
Interface:
SDIO
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
12.0x12.0x1.6mm
Application:
Mini Car DVR
150Mbps Realtek Wifi Module RTL8189FTV 802.11 B Wifi Camera Module

Product description


F89FTSM13-W4 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps.

This WLAN Module design is based on Realtek RTL8189FTV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.



Product parameters


Model No F89FTSM13-W4 Main Chipset RTL8189FTV
Interface SDIO WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz Power Supply 3.3V
Size 12.0x12.0x1.6mm RF Chain 1T1R
Operating Temperature 0° Cto 70°C Storage Temperature -40° Cto 125°C



Product features


Operate at ISM frequency bands (2.4GHz)

SDIO Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Enterprise level security which can apply WPA/WPA2 certification for WiFi

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rate



Block Diagram


150Mbps Realtek Wifi Module RTL8189FTV 802.11 B Wifi Camera Module 0



Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.Detailed specifications docs,please download from the official website or sales.
