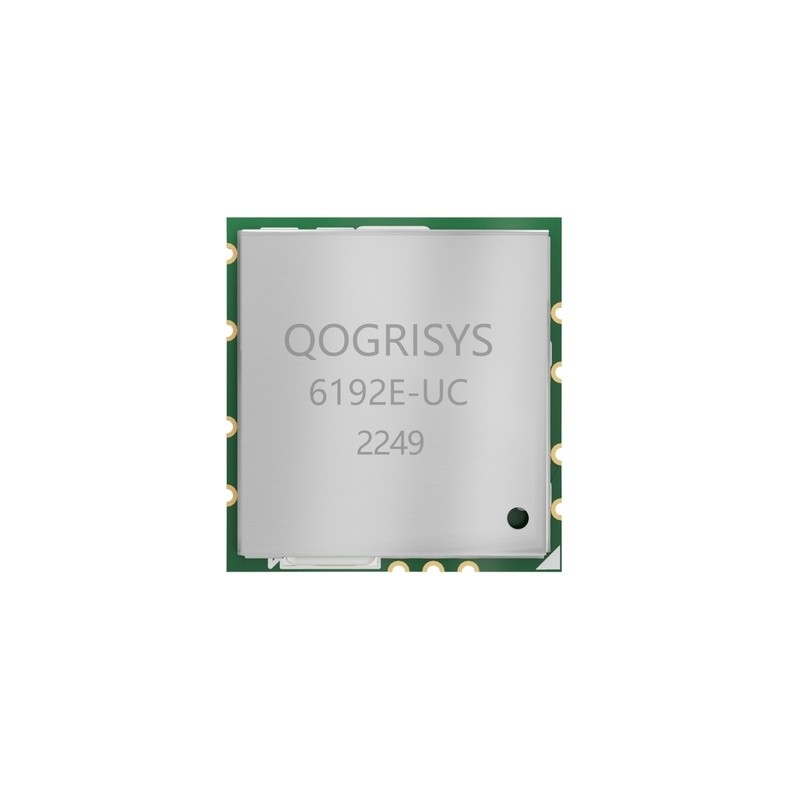

Single Band 2x2 Mimo Antenna Realtek WiFi Module 300mbps RF Transceiver Module
-
High Light
USB Interface Realtek WiFi Module
,RTL8192FC Realtek WiFi Module
,Mimo Antenna RF Transceiver Module
-
ChipsetRTL8192FC
-
Frequency Range2.400 GHz ~ 2.497 GHz
-
Operating Temperature0°C To 70°C
-
Storage Temperature-40°C To 85°C
-
Pin Foots11 Pins
-
Number Of ChannelsCh1 ~ Ch14
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationROHS/REACH
-
Model Number6192E-UC
-
Minimum Order Quantity5/pcs
-
PriceUSD 4.1-5.5/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month
Single Band 2x2 Mimo Antenna Realtek WiFi Module 300mbps RF Transceiver Module
Single Band 2x2 Mimo Antenna Realtek WiFi Module 300mbps RF Transceiver Module
Reference Design Of RTL8192FC Wifi Module
1. S0 /S1 2antenna trace as short as possible,better added πcircuit for matching tunning ;
2. USB trace control as 90ohm impedance;
3. 3V3 power supply added 2 filter capacitor (10uf+0.1uf) ;
Detailed Parameters Of RTL8192FC Wireless Module
| Model No | 6192E-UC | Main Chipset | RTL8192EU |
| Interface | USB | WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 300Mbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
| Frequency | 2.4GHz | Power Supply | 3.3V |
Pin Foots
| NO | Name | Type | Description | Voltage |
| 1 | GND | － | Ground connections | |
| 2 | ANT 0 | I/O | RF I/O port0 | |
| 3 | ANT 1 | I/O | RF I/O port1 | |
| 4 | GND | － | Ground connections | |
| 5 | VDD33 | P | Main power voltage source input 3.3V | 3.3V |
| 6 | USB_DM | I/O | USB D- | |
| 7 | USB_DP | I/O | USB D+ | |
| 8 | GND | － | Ground connections | |
| 9 | NC | － | Floating (Don’t connected to ground) | |
| 10 | NC | － | Floating (Don’t connected to ground) | |
| 11 | NC | － | Floating (Don’t connected to ground) |
Layout Recommendation
Application Of RTL8192FC Wifi Module
