Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: ROHS/REACH

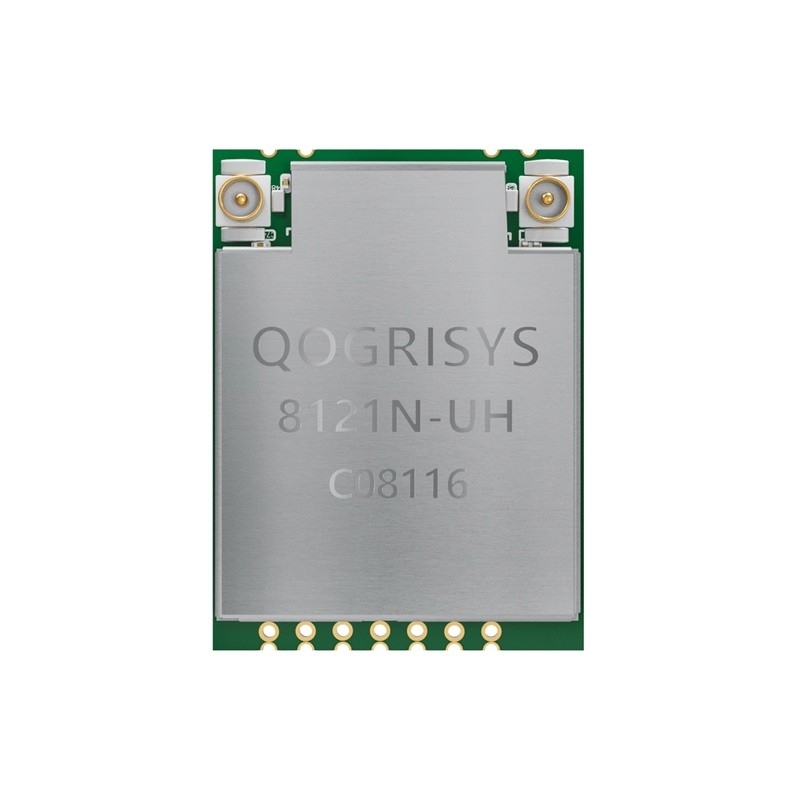

Model Number: 8121N-UH
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 5.8-8/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Main Chip: |
AR1021X |
Operating Voltage: |
5V |
Operating Frequency: |
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) |
Host Interface: |
USB |
Operating Temperature: |
-30°C To 85°C |
Dimension: |
27.0x20.0x2.3mm |
Main Chip: |
AR1021X |
Operating Voltage: |
5V |
Operating Frequency: |
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) |
Host Interface: |
USB |
Operating Temperature: |
-30°C To 85°C |
Dimension: |
27.0x20.0x2.3mm |
| Model No | 8121N-UH |
| WiFi Standard | IEEE802.11a/n |
| Data Rate | 300Mbps |
| RF Antenna | External Antenna |
| RF Chain | 2T2R |
| OS Supported | Linux/Android |
the USB wifi module is a complete,small 802.11a/b/g/n Wi-Fi Solution optimized for low-cost, and highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a 5V power supply .
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.
802.11a/b/g/n 5G WLAN applications.
2T2R and speed up to 300Mbps.
Supports 20/40MHz bandwidth.
WLAM interface is USB.
Has high power FEM.
Please contact us before buying modules.Otherwise,the module may not meet your needs or modules are not it stock. Datasheets are available any time.
