Realtek Wireless Transceiver Module 150Mbps BT4.2 EDR RF WIFI Module

Realtek Wireless Transceiver Module 150Mbps BT4.2 EDR RF WIFI Module

  • High Light

    Realtek Wireless Transceiver Module

    ,

    150Mbps Wireless Transceiver Module

    ,

    EDR RF WIFI Module

  • Type
    Drive IC
  • Place Of Origin
    Guangdong, China
  • LXW(MM)
    12.2 X 13
  • Working Frequency
    2.4GHz
  • Transmission Rate
    150Mbps
  • BT Support
    BT 4.2
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6223E-UUD
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.2-4/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Realtek Wireless Transceiver Module 150Mbps BT4.2 EDR RF WIFI Module

2.4GHz Realtek Wireless Transceiver BT4.2 RF WIFI Module With Android System

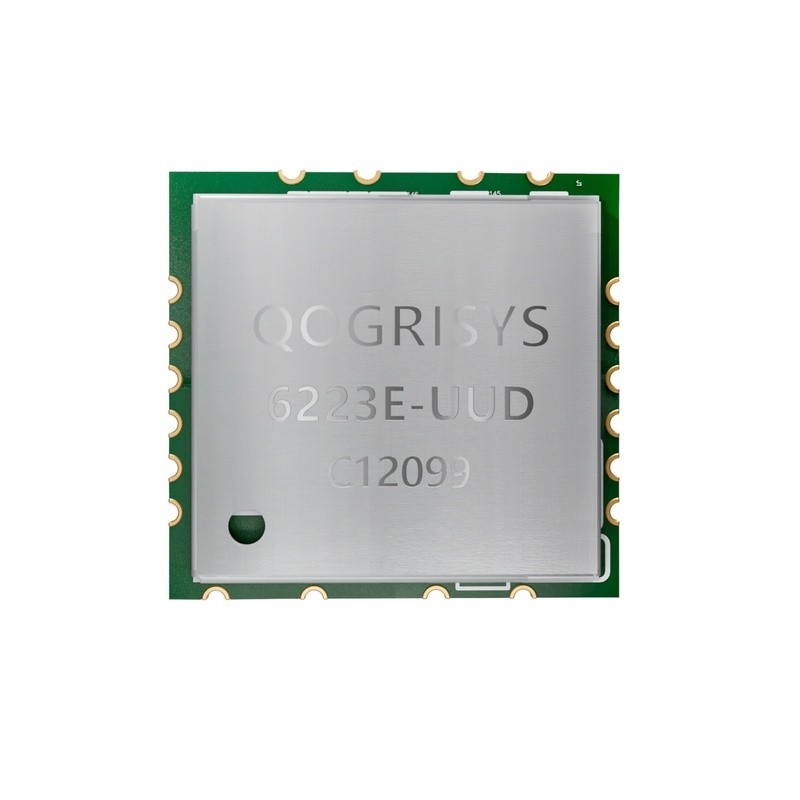

6223E-UUD is a small size and low profile of Wi-Fi + BT Combo module, board size is 12.2mm*13mm with module thickness of 1.9mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for Wi-Fi and Bluetooth. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2.

6223E-UUD uses highly integrated Wi-Fi/BT single chip based on advanced COMS process. 6223E-UUD integrates whole Wi-Fi/BT function blocks into a chip, such as USB, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.

This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.



WLAN/BT Major Specifications

-- PHY: IEEE 802.11 b/g/n with support for 2.4-band 1x1;
-- WIFI supports USB interface;
-- BT supports USB interface;
-- BT supports 2.1+EDR;
-- BT support 4.2;

SOC Main Specifications

-- support WPA/WPA2;
-- PHY supports 1T1R with a transmission rate of 150Mbps;
• other major specifications
-- transmission power:

-- Wi-Fi:
-- 802.11b@11Mbps 16±1.5dBm 802.11g@54Mbps 14±1.5dBm
-- 802.11n@65Mbps 13±1.5dBm (MCS 7_HT20)
-- BT:
-- Max +10dBm



Module Physical Dimensions

Realtek Wireless Transceiver Module 150Mbps BT4.2 EDR RF WIFI Module 0

Block Diagram

Realtek Wireless Transceiver Module 150Mbps BT4.2 EDR RF WIFI Module 1
