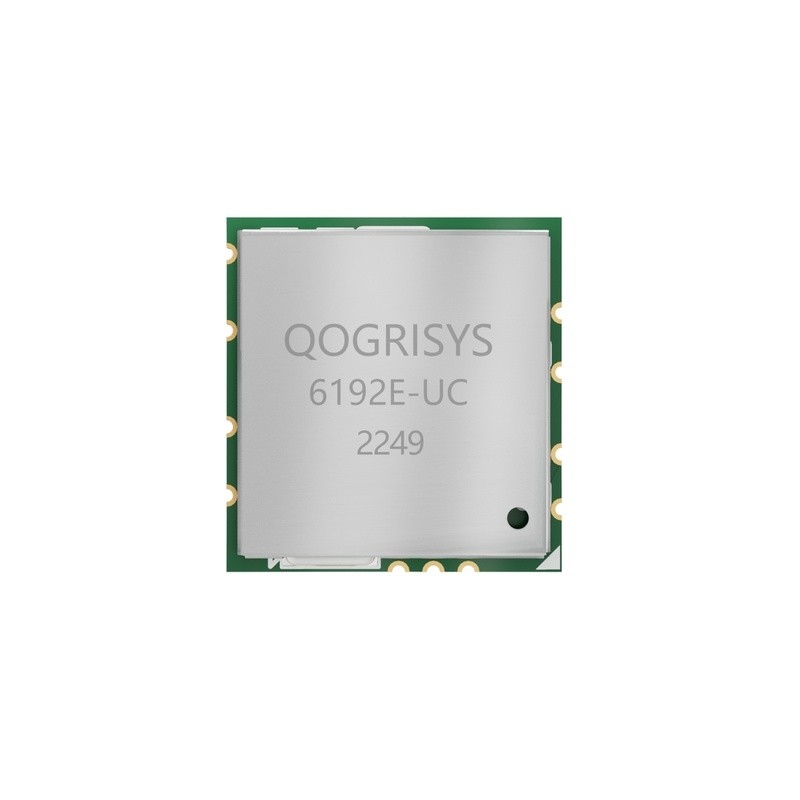

RTL8192FC Wifi Transceiver Module SMT 12X12mm LGA Package 2T2R 300mbps

Product Details

Place of Origin: China

Brand Name: FN-LINK

Certification: ROHS/REACH

Model Number: 6192E-UC

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 4.1-5.5/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

RTL8192FC Wifi Transceiver Module

,

SMT Wifi Transceiver Module

,

2T2R Wifi Transceiver Module

Chipset:
RTL8192FC
WIFI Standard:
IEEE802.11b/g/n
Wifi Interface:
Support USB V1.0/1.1/2.0
Size:
12.2 X 12.9 X 1.7 (typical) Mm
Operating Temperature:
0°C To 70°C
Storage Temperature:
-40°C To 85°C
Chipset:
RTL8192FC
WIFI Standard:
IEEE802.11b/g/n
Wifi Interface:
Support USB V1.0/1.1/2.0
Size:
12.2 X 12.9 X 1.7 (typical) Mm
Operating Temperature:
0°C To 70°C
Storage Temperature:
-40°C To 85°C
RTL8192FC Wifi Transceiver Module SMT 12X12mm LGA Package 2T2R 300mbps

2022 New Product SMT 12X12mm LGA Package 2T2R 300mbps Wifi Transceiver Module



Introduction

6192E-UC base on RTL8192FC complied with IEEE 802.11 b/g/n standard from

2.4G-2.5GHz. Support 300Mbps high speed wireless network connection with USB

interface.



Feature 1

12.2x12.9mm, 3.3V power in.

Feature 2

RTL8192FC.

Feature 3

Complete 802.11n 2x2 MIMO solution for 2.4GHz, maximum data rate up to

Feature 4

300Mbps using 40Mhz bandwidth.

Feature 5

Complies with USB2.0 for WLAN.





Detailed Parameters

Model No 6192E-UC Main Chipset RTL8192EU
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 300Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android/Windows
Frequency 2.4GHz Power Supply 3.3V

Schematic Diagram

RTL8192FC Wifi Transceiver Module SMT 12X12mm LGA Package 2T2R 300mbps 0

Ordering Information

Part No.

Description

FG6192EUCX-00

RTL8192FC,802.11b/g/n ,2T2R,12.2*12.9,USB2.0

The Key Material List


TVS

0201 4V 0.05pF 15KV TVS

Murata,Sunlord,WAYON

Inductor

0806 2.2uH,±20%,1200mA

Sunlord,Cenke,Ceaiya,

Crystal

SMD3.2X2.5,40MHz,CL=15pF, 10ppm

TKD,ECEC,Hosonic,JWT

Chipset

RTL8192FC-CG,QFN-32,4x4mm

Realtek
PCB

6192E-UC-V1.0

Green,4L,FR4,Au,12.2X12.9X0.8mm

XY-PCB,KX-PCB,SL-PCB,Sunlord
