Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT

  • High Light

    Bluetooth2.1 Realtek WiFi Module

    ,

    1X1 Realtek WiFi Module

    ,

    STB Wifi Single Band Module

  • Product Name
    Realtek WiFi Module
  • Type
    2.4GHz WiFi Bluetooth Module
  • WiFi Standard
    802.11b/g/n
  • Bluetooth Protocol
    Bluetooth 4.2
  • Operating Voltage
    3.3±10% Vdc I/O Supply Voltage
  • Dimension
    L12.2*W13*H1.5mm
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6223E-UUD
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.4-4.4/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT

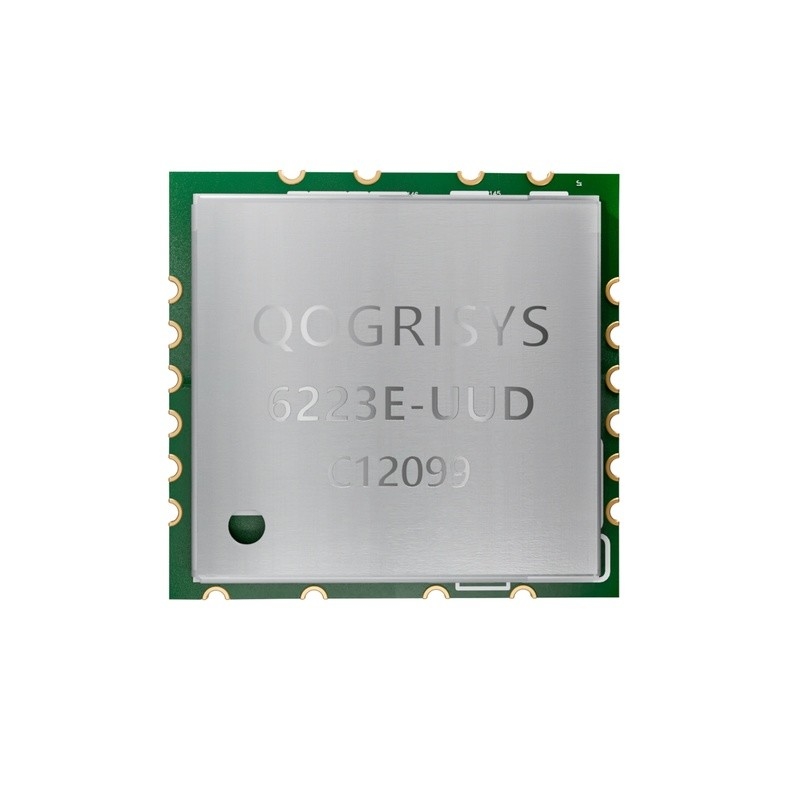

6223E-UUD is a small size and low profile of Wi-Fi + BT Combo module, board size is 12.2mm*13mm . It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for Wi-Fi and Bluetooth. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2.





Features



Model No

6223E-UUD

Main Chipset

RTL8723DU

Interface

USB

WiFi Standard

IEEE802.11b/g/n

Data Rate

150Mbps

Certification

ROHS REACH

RF Antenna

External Antenna

OS Supported

Windows/Linux/Android

Frequency

2.4GHz

Power Supply

3.3V

Size

12.2x13.0x1.9mm

RF Chain

1T1R

Operating Temperature

0° C to 70°C

Storage Temperature

-55° C to 85°C



More Choice

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT 0

Model: 6223A-SRD

Antenna: External

Main Chipset: RTL8723DS

Power Supply: 3.3V

Dimension: 12 x 12 x 2.1 (typical) mm

Host Inteface: SDIO/Uart/PCM

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT 1

Model: 6221A-SRC

Antenna: External

Main Chipset: RTL8821CS

Power Supply: 3.3V

Dimension: 12 x 12 x 2.1 (typical) mm

Host Inteface: SDIO/Uart/PCM

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT 2

Model: 6221E-UUC

Antenna: External

Main Chipset: RTL8821CU

Power Supply: 3.3V

Dimension: 13 x 12.2 x 1.7 (typical) mm

Host Inteface: USB

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT 3

Model: 6111E-UC

Antenna: External

Main Chipset: RTL8811CU

Power Supply: 3.3V

Dimension: 13 x 12.2 x 1.7 (typical) mm

Host Inteface: USB

Wifi 1X1 Bluetooth2.1 Realtek RTL8723DU WiFi Module For STB/OTT 4

Model: 8223A-SR

Antenna: External

Main Chipset: QCA1023

Power Supply: 3.3V

Dimension: 12 x 12 x 1.8 (typical) mm

Host Inteface: SDIO/UART/PCM



Inquiry
Please contact us before you place the order that we can make sure this module can reach your requirement and then share with you the driver. The follow up is up to the process of your project and exact problems during the testing.
