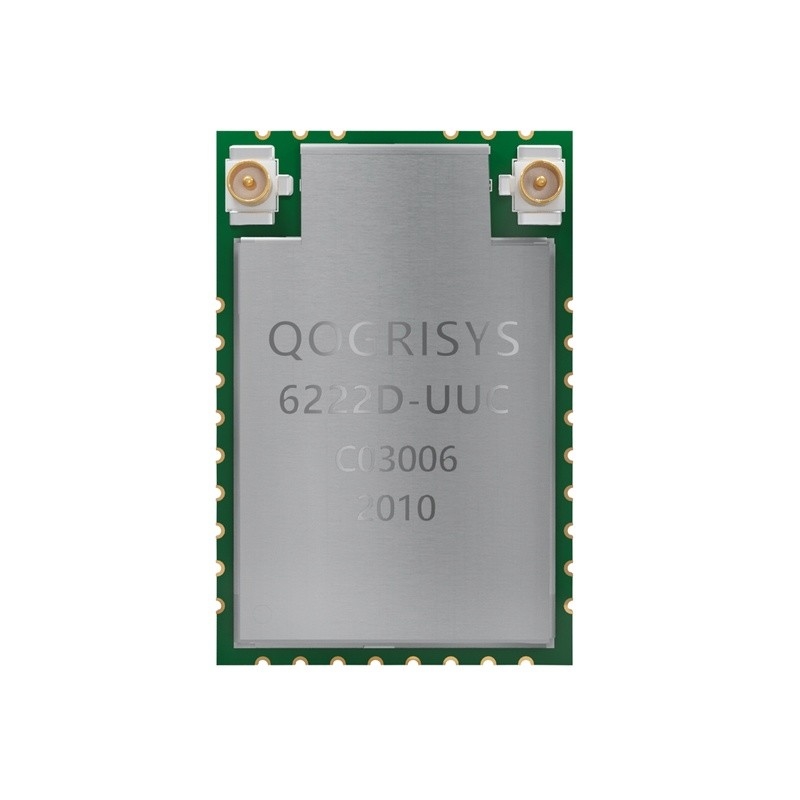

Two IPEX Wifi Bluetooth Module 867Mbps 32 Pins For OTT IPTV

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: CE/ROSH/REACH

Model Number: 6222D-UUC

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD4.5-7.5/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

Two IPEX Wifi Bluetooth Module

,

OTT IPTV Wifi Bluetooth Module

,

867Mbps Wifi Transceiver Module

Module:
6222D-UUC
Highly Integrated:
Yes
Comply With:
IEEE802.11a/b/g/n/ac
Antenna:
2T2R+BT ANT
IPEX:
Two
Pins:
32
Module:
6222D-UUC
Highly Integrated:
Yes
Comply With:
IEEE802.11a/b/g/n/ac
Antenna:
2T2R+BT ANT
IPEX:
Two
Pins:
32
Two IPEX Wifi Bluetooth Module 867Mbps 32 Pins For OTT IPTV

Original Wifi Bluetooth Module Speed up to 867Mbps For OTT/ IPTV

6222D-UUC is a low-cost and low-power consumption module which has all of the Wi-Fi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.

Two IPEX Wifi Bluetooth Module 867Mbps 32 Pins For OTT IPTV 0
Quick Glance OF 6222D-UUC

1.WLAN SOC for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.

2.Dual-stream spatial multiplexing up to 867 Mbps data rate.

3.2.4GHz:supports 20/40MHz

4.5GHz:20/40/80MHz

5.USB2.0 for WLAN and BT controller

Pin Defination

Two IPEX Wifi Bluetooth Module 867Mbps 32 Pins For OTT IPTV 1



NO. Name Type Description Voltage
1 GPIO5 I/O

IC GPIO5

(sFlash MISO PIN)


2 GPIO4 I/O

IC GPIO4

(sFlash MOSI PIN)


3 EESK I/O External Serial Flash clock
(sFlash for dongle application)

4 EECS I/O External 32K or RTC clock input
(sFlash CS PIN)

5 GND Ground connections
6 WL_DP+ I/O USB data+ (USB2.0)
7 WL_DM- I/O USB data- (USB2.0)
8 GND Ground connections
9 GPIO3_WPS IC GPIO3(WLAN WPS )
10 GPIO8_LED IC GPIO8(WLAN LED low active)
11 GND Ground connections
12 BT_RF I/O BT RF port
13 GND Ground connections
14 BT_WAKE_HOST O BT wake up HOST 3.3V
15 HOST_WAKE_BT I HOST Wake up BT 3.3V
16 GPIO0 IC GPIO0
17 GPIO1 IC GPIO1
18 GND Ground connections
19 WL_RF1 I/O 2.4G/5G Wi-Fi RF port1 (Option)
20 GND Ground connections
21 GND Ground connections
22 WL_RF0 I/O 2.4G/5G Wi-Fi RF port0 (Option)
23 GND Ground connections
24 GND Ground connections
25 GND Ground connections
26 WL_WAKE_HOST O

WLAN wake up HOST

(Shared with IC GPIO6)

3.3V
27 RESET I

Enable pin for device

ON: pull high ; OFF: pull low

3.3V
28 HOST_WAKE_WL I

HOST_WAKE_WLAN

(Shared with IC GPIO7)

3.3V
29 GND Ground connections
30 VDD33 P 3.3V Voltage input 3.3V
31 NC No connection (Floating)
32 GND Ground connections

Suitable Application

You can apply 6222D-UUC to Tablet/ Notebook/ TV board/ Advertising machine/ OTT/ IPTV/ DVB/ STB / DV/ IPC/ Mini Driving Recorder/ Doorbell / Smart TV etc.
