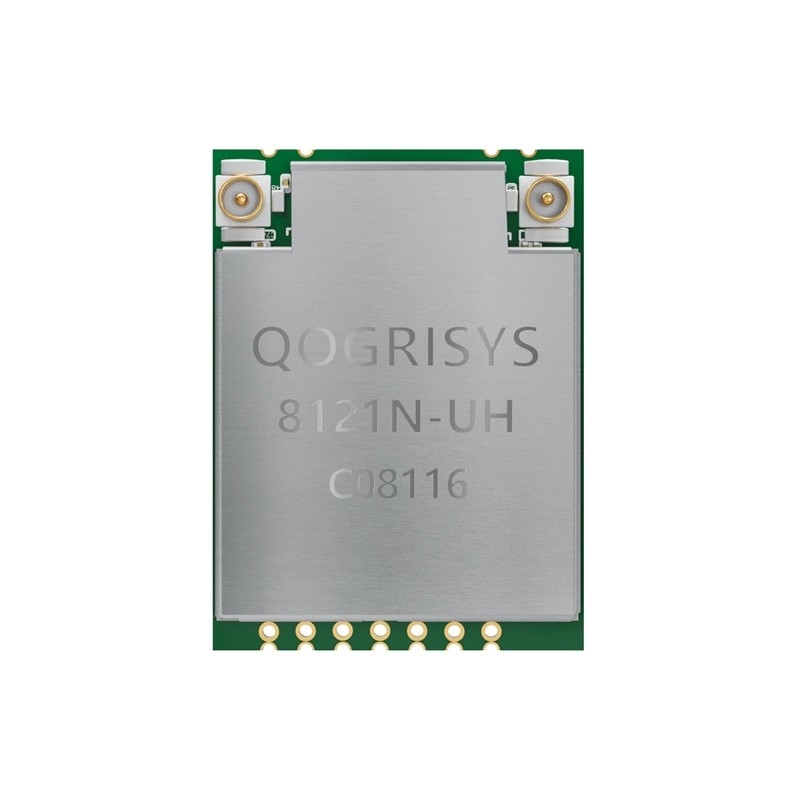

2X2 5Ghz WiFi Module AES WPA Wifi Transceiver Module For HDMI

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 8121N-UH

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 5.8-8/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

2X2 5Ghz WiFi Module

,

HDMI 5Ghz WiFi Module

,

AES WPA Wifi Transceiver Module

Chipset:
AR1021X
WIFI Standard:
IEEE802.11a/n
Frequency:
5.8GHz
Interface:
USB
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
27.0x20.0x2.3mm
Application:
Wireless HDMI Transmitter
Chipset:
AR1021X
WIFI Standard:
IEEE802.11a/n
Frequency:
5.8GHz
Interface:
USB
OS Support:
Android /Linux
Security:
WEP,TKIP,AES,WPA,WPA2
Size:
27.0x20.0x2.3mm
Application:
Wireless HDMI Transmitter
2X2 5Ghz WiFi Module AES WPA Wifi Transceiver Module For HDMI

WiFi 802.11 a/n 2X2 5G Only High Power Module For HDMI



General Specification

Model Name 8121N-UH
Product Description Support WiFi
Dimension L x W x H: 27 x 20 x 2.3 (typical) mm
WiFi Interface Support USB2.0
Operating temperature -30°C to 85°C
Storage temperature -40°C to 125°C





A simplified block diagram of the module is depicted in the figure below:





2X2 5Ghz WiFi Module AES WPA Wifi Transceiver Module For HDMI 0





Recommended Operating Rating

  Min. Typ. Max. Unit
Operating Temperature -30 25 85 deg.C
VCC5V 4.8 5.0 5.2 V





8121N-UH WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11a/n 5G WLAN applications.

Dual-stream spatial mulitiplexing up to 300Mbps data rate.

Supports 20/40MHz bandwidth.

Supports USB interface for WLAN.

Integrated high power FEM.
