SDIO BLE4.2 150Mbps Wireless Wifi Module 6223A-SRD Rf Equipment

SDIO BLE4.2 150Mbps Wireless Wifi Module 6223A-SRD Rf Equipment

  • High Light

    SDIO Wireless Wifi Module

    ,

    150Mbps Wireless Wifi Module

    ,

    BLE4.2 Wireless Wifi Module

  • Chipset
    RTL8723DS
  • WIFI Standard
    IEEE802.11b/g/n
  • Frequency
    2.4GHz
  • Interface
    SDIO/Uart
  • OS Support
    Windows/Android /Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    12.0x12.0x1.8mm
  • Application
    Tablet PC
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6223A-SRD
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 2.3-4.2/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

SDIO BLE4.2 150Mbps Wireless Wifi Module 6223A-SRD Rf Equipment

SDIO BLE4.2 150Mbps Wireless Wifi Module 6223A-SRD Rf Equipment



Introduction

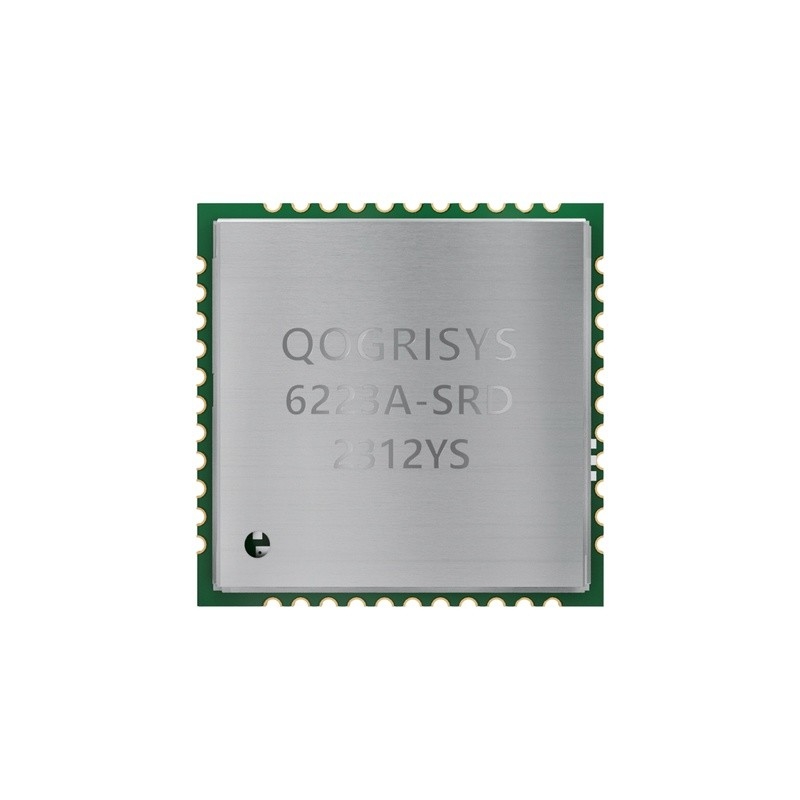

6223A-SRD is a small size and low profile of WiFi + BT Combo module with LGA (Land-Grid Array) footprint, board size is 12mm*12mm with module thickness of 2mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides SDIO interface for WiFi to connect with host processor and high speed UART interface for BT. It also has a PCM interface for audio data transmission with direct link to external audio codec via BT controller. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11n b/g/n MIMO technology and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2. 6223A-SRD uses highly integrated WiFi/BT single chip based on advanced COMS process. 6223A-SRD integrates whole WiFi/BT function blocks into a chip, such as SDIO/UART, MAC, BB, AFE, RFE, PA,EEPROM and LDO/SWR, except fewer passive components remained on PCB.



Features

Operate at ISM frequency bands (2.4GHz)
SDIO for WiFi and UART for Bluetooth
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode
Fully qualified for Bluetooth 3.0
Fully qualified for Bluetooth 4.2 Dual mode
Full–speed Bluetooth operation with Piconet and Scatternet support
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150Mbps upstream PHY rates

Environmental Compliance
SDIO BLE4.2 150Mbps Wireless Wifi Module 6223A-SRD Rf Equipment 0



Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products



Note

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
