5GHz WiFi Mini Projector RTL8821CU Realtek WiFi Module

5GHz WiFi Mini Projector RTL8821CU Realtek WiFi Module

  • High Light

    lora gateway module

    ,

    wifi speaker module

    ,

    projector realtek rtl8821cu wifi module

  • Chipset Supplier
    Realtek RTL8821CU
  • RF Specification
    IEEE802.11a/b/g/n/ac+BLE4.2
  • Frequency Range
    Dual Band 2.4G/5.8G
  • OS Compatibility
    Windows/Android /Linux
  • Certifications
    Contact Our Sales To Get The Report
  • Compliance
    RoHS, REACH
  • Place of Origin
    China
  • Brand Name
    OFLYCOMM
  • Certification
    CE/ROHS/REACH
  • Model Number
    6221E-UUC-05
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 3.3-5.5/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

5GHz WiFi Mini Projector RTL8821CU Realtek WiFi Module

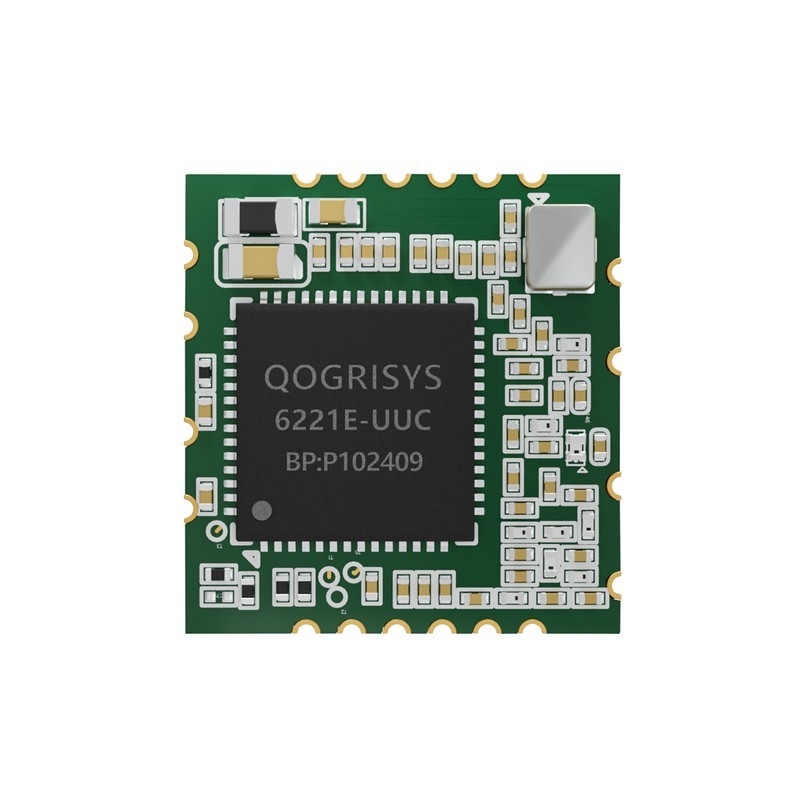

5GHz WiFi Mini Projector Embedded USB Realtek WiFi Module RTL8821CU WiFi BT Combo



Overview

6221E-UUC supports both WiFi 802.11ac with data rates up to 433Mbps and Bluetooth® 4.2.

USB Interface module with added terminals for enabling GPIO’s and Bluetooth Functions to enable coexistence.

Currently Bluetooth® includes EDR transmission and supports bandwidths up to 2Mbps, or in HS Mode up to 3Mbps.

Features

1T1R Antenna Output

802.11ac MIMO solution for 5G band

433Mbps High Speed WLAN

IEEE standards support: IEEE 802.11ac/a/b/g/n

WPA/WPA2 certification for WiFi

Bluetooth® 4.2 Dual Mode

USB 2.0 and PCM interface

Support for WiFi/Bluetooth® Coexistence, with both technologies active a slight drop in Wi-Fi throughput is noted.

Bluetooth® adaptive power management mechanism

RoHS, REACH Compliant Solution

Pin Outline

5GHz WiFi Mini Projector RTL8821CU Realtek WiFi Module 0

Note


There are two different version of this model. One is single antenna, 2.4G/BT/5.8G share the same one. Another is dual antenna, BT and 5.8G share the same other, 2.4G use the rest one. If your application would use Bluetooth more, the latter is a better choice.
