Module Overview

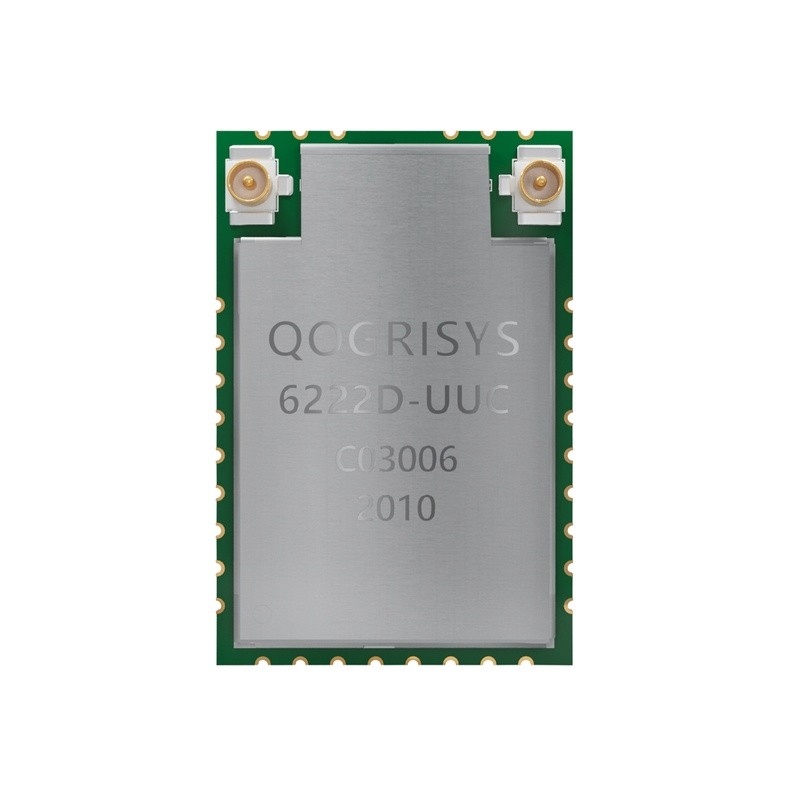

6222D-UUC is 802.11ac/a/b/g/n Dual-Band 2T2R WiFi+Bluetooth 5.0 Module (WiFi 5), 802.11ac allow efficient allocation of low data-rate connections, also it could interact with different vendors’ 802.11ac/a/b/g/n 2×2 Access Points with SISO standard and can accomplish up to speed of 867Mbps with dual stream.
Feature | Description | |||
WLAN Standard | IEEE 802.11b/g/n Wi-Fi compliant | |||
Frequency Range | 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band) | |||
Number of Channels | 2.4GHz:Ch1 ~ Ch14 | |||
Output Power | 802.11b /11Mbps : 17 dBm ± 1.5 dB @ EVM £ -9dB | |||
802.11g /54Mbps : 15 dBm ± 1.5 dB @ EVM £ -25dB | ||||
802.11n /MCS7 : 14 dBm ± 1.5 dB @ EVM £ -28dB | ||||
Spectrum Mask | Min. b/g/n | Typ. b/g/n | Max. b/g/n | Unit b/g/n |
Feature | Description | |
WLAN Standard | IEEE 802.11a/n/ac 2x2, Wi-Fi compliant | |
Frequency Range | 4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) | |
Number of Channels | 5.0GHz:Please see the table1 | |
Output Power | 802.11a /54Mbps : 15 dBm ± 1.5 dB @ EVM £ -25dB | |
802.11n /MCS7 : 14 dBm ± 1.5 dB @ EVM £ -28dB | ||
802.11ac /MCS9 : 13 dBm ± 1.5 dB @ EVM £ -32dB | ||
Test Items | Test Value | Standard Value |
