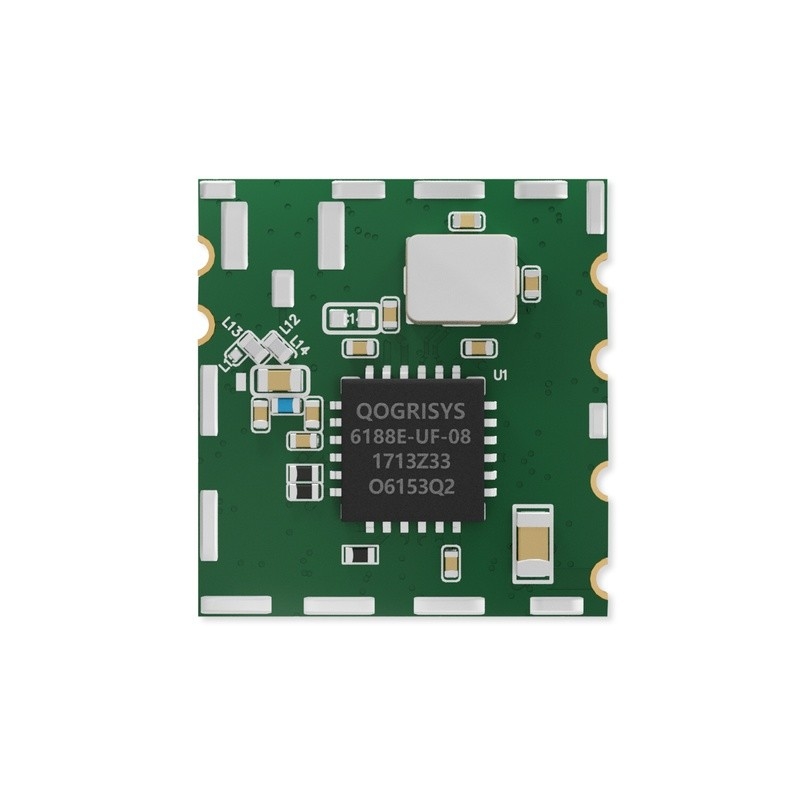

F88EUUM23-W3 is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0 network interface device. High-speed wireless connection up to 150 Mbps. This WLAN Module design is based on Realtek RTL8188EUS. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n specification.
Power Consumption
WiFi only:
LINK: 40mA
TX Mode: (Continuous mode) 80mA (MCS7/BW20M/13dBm)
TX Mode: (Continuous mode) 70mA (MCS7/BW40M/13dBm)
RX Mode: (Continuous mode) 40mA (MCS7 /-69dBm)
Pin Assignment
Pin # | Name | Description |
1 | SW | Low potential WIFI off impending WIFI |
2 | VCC | 3.3V DC power supply input |
3 | U- | USB Data DN |
4 | U+ | USB Data DP |
5 | GND | Ground |
6 | LED | WiFi LED |
