Product Details
Place of Origin: China
Brand Name: OFLYCOMM
Certification: CE/FCC/IC/KCC/SRRC/TELEC/NCC/ROHS/REACH
Model Number: 6188S-UF
Payment & Shipping Terms
Minimum Order Quantity: 5/pcs
Price: USD 1.4-2.4/pcs
Packaging Details: Reel
Delivery Time: 15-40 workdays
Payment Terms: T/T
Supply Ability: 4000000pcs/month
Main Chipset: |
RTL8188FTV |
Operating Voltage: |
3.3Vdc ±10% |
Operating Frequency: |
2.400～2.4835GHz |
Host Interface: |
USB |
Operating Temperature: |
0°C-70°C |
Dimension: |
14.8x18.2x1.9mm |
Main Chipset: |
RTL8188FTV |
Operating Voltage: |
3.3Vdc ±10% |
Operating Frequency: |
2.400～2.4835GHz |
Host Interface: |
USB |
Operating Temperature: |
0°C-70°C |
Dimension: |
14.8x18.2x1.9mm |
| Model No | 6188S-UF |
| WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 150Mbps |
| RF Antenna | PCB Antenna |
| OS Supported | Linux/Android/Windows |
| Size | 14.8x18.2x1.9mm |

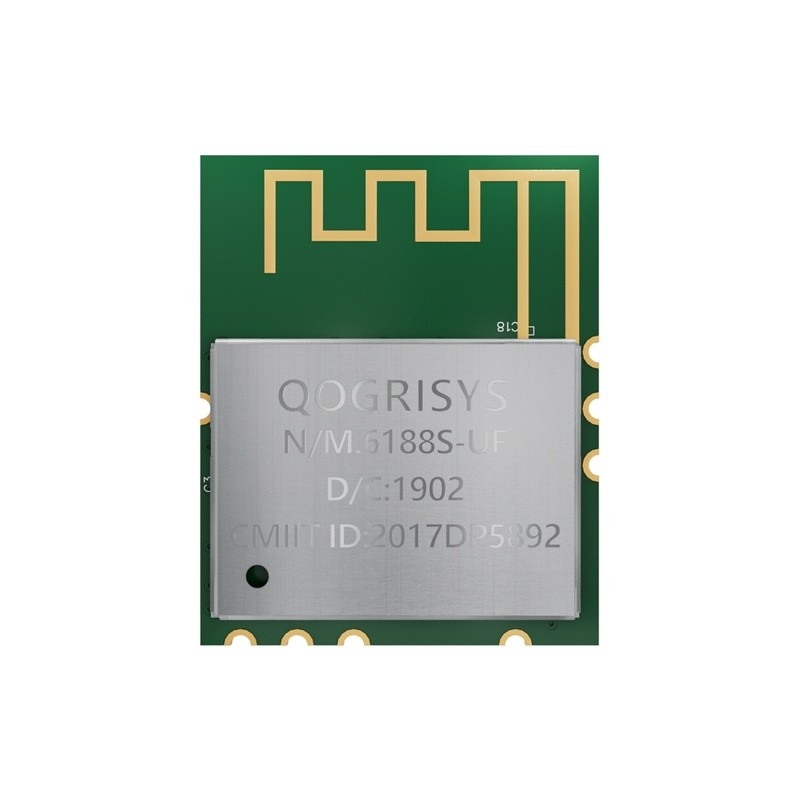

6188S-UF usb wifi module is a small form-factor, single stream, 802.11b/g/n WiFi module with low power application processor. It is a highly integrated Wi-Fi single chip which is based on Realtek RTL8188FTV,and supports 150Mbps PHY rate. It is to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.
Operate at 2.4GHz
WiFi Interface is USB
IEEE standards support: IEEE 802.11b/g/n
Enterprise level security which can apply WPA/WPA2 certification for WiFi
1T1R,speed up to 150Mbps
wifi hard disk, WiFi router, remote monitoring, remote video, Industrial control DIY
Note
Please contact us before buying modules.Otherwise,the module may not meet your needs or modules are not it stock. Datasheets are available any time.
