Home > products > Realtek WiFi Module > Realtek RTL8723DU Wireless Wifi Low Energy Module 2.4G 802.11 N Module

Realtek RTL8723DU Wireless Wifi Low Energy Module 2.4G 802.11 N Module

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: CE/FCC/SRRC/ROHS/REACH

Model Number: 6223E-UUD-W2

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 2.3-3/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

lora gateway module

,

wifi speaker module

Chipset:
RTL8732DU
WIFI Standard:
IEEE802.11b/g/n
Interface:
USB
Size:
12.2x13.0x1.9mm
Antenna:
External Antenna
Type:
Realtek WiFi Module
Chipset:
RTL8732DU
WIFI Standard:
IEEE802.11b/g/n
Interface:
USB
Size:
12.2x13.0x1.9mm
Antenna:
External Antenna
Type:
Realtek WiFi Module

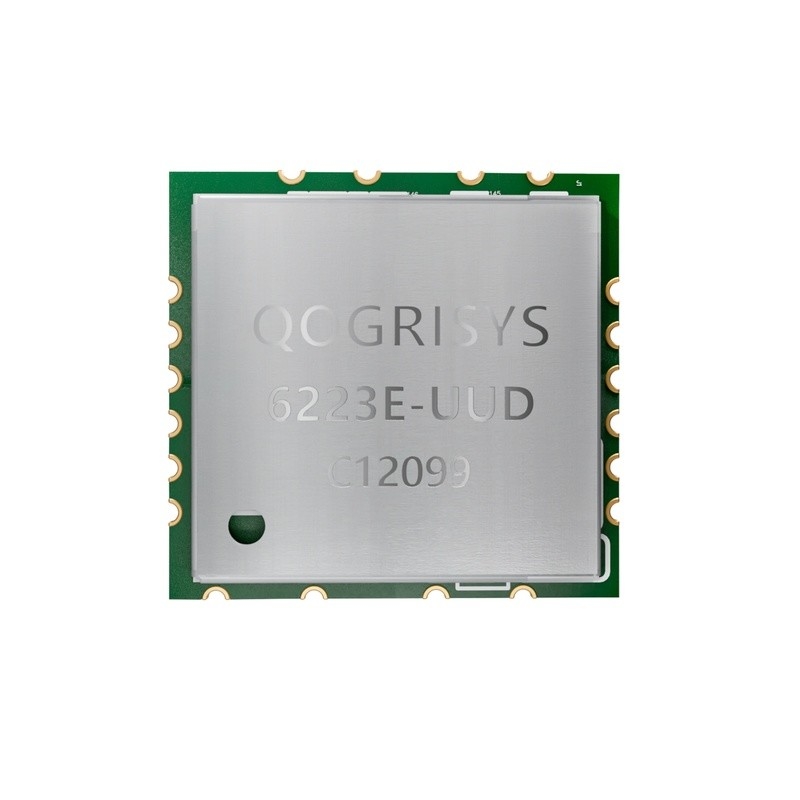

Realtek RTL8723DU Wireless Wifi Low Energy Module 2.4G 802.11 N Module

2.4G RTL8723DU 802.11n Wireless USB Realtek WiFi Module For WiFi Display Dongle



Realtek WiFi Module Introduction

6223E-UUD-W2 Realtek wifi module is a very high performance module that includes 2.4GHz WLAN and Bluetooth functionality for consumer grade applications. Based on Realtek RTL8723DU, the module provides IEEE 802.11b/g/n (1x1) and Bluetooth 4.2+EDR.

Realtek WiFi Module Detailed Parameters

Model No 6223E-UUD-W2 Main Chipset RTL8723DU
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Windows/Linux/Android
Frequency 2.4GHz Power Supply 3.3V
Size 12.2x13.0x1.9mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 125°C

Realtek WiFi Module Features

Operate at ISM frequency bands(2.4GHz)

USB for WiFi and Bluetooth

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE802.11e, IEEE802.11h,IEEE802.11i

Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode

Fully qualified for Bluetooth 3.0

Fully qualified for Bluetooth 4.2 Dual mode

Full–speed Bluetooth operation with Piconet and Scatternet support

Enterprise level security which can apply WPA/WPA2 certification for WiFi

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150Mbps upstream PHY rates

Realtek WiFi Module Application Range

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,
AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Purchase

Please engage with our sales team to determine if this module is suitable for your applications.Regarding sample request,please inform us the detail of your project, thanks for your supports.
