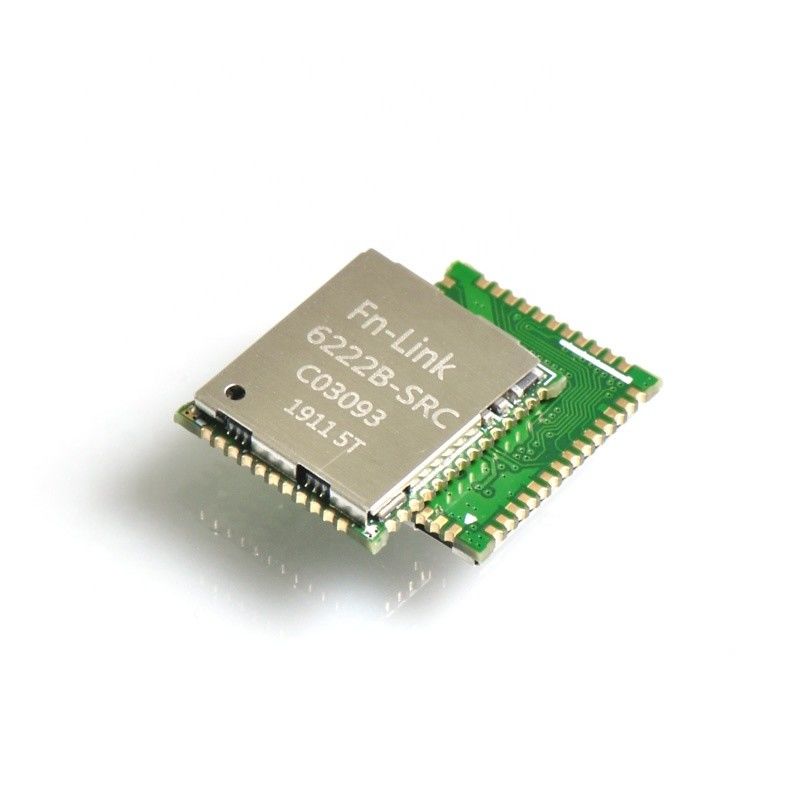

2.4G 5.8G RTL8822CS 802.11ac 2T2R SDIO WiFi Module For Smart TV

Product Details

Place of Origin: China

Brand Name: QOGRISYS

Certification: ROHS/REACH

Model Number: 6222B-SRC

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 5.1-7/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

wifi bt combo module

,

high speed wifi module

Chipset:
RTL8822CS
WIFI Standard:
IEEE802.11a/b/g/n/ac
Interface:
SDIO/Uart/PCM
Size:
15.0x13.0x1.8mm
Antenna:
External Antenna
Type:
SDIO WiFi Module
Chipset:
RTL8822CS
WIFI Standard:
IEEE802.11a/b/g/n/ac
Interface:
SDIO/Uart/PCM
Size:
15.0x13.0x1.8mm
Antenna:
External Antenna
Type:
SDIO WiFi Module
2.4G 5.8G RTL8822CS 802.11ac 2T2R SDIO WiFi Module For Smart TV

2.4G 5.8G RTL8822CS 802.11ac 2T2R SDIO WiFi Module For Smart TV



SDIO WiFi Module Introduction

6222B-SRC sdio wifi module is a very high performance module that includes 2.4GHz/5GHz WLAN and Bluetooth functionality for consumer grade applications. Based on Realtek RTL8822CS, the module provides IEEE 802.11a/b/g/n/ac (2x2) and Bluetooth 4.2+EDR.

SDIO WiFi Module Detailed Parameters
Model No 6222B-SRC Main Chipset RTL8822CS
Interface SDIO/Uart WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 867Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 15.0x13.0x1.8mm RF Chain 2T2R
Operating Temperature 0° C to 70°C Storage Temperature -40° C to 125°C
SDIO WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data

SDIO WiFi Module Application

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers  ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Purchase

Please engage with OFLYCOMM sales team to determine if this module is suitable for your applications. Regarding sample request,please inform us the details of your project, thanks for your support.Skype:+8618280383459
