150Mbps High Speed Wifi Module RTL8188FTV With PCB Antenna ROHS Certification

150Mbps High Speed Wifi Module RTL8188FTV With PCB Antenna ROHS Certification

  • High Light

    lora gateway module

    ,

    wifi speaker module

  • Chipset
    RTL8188FTV
  • Frequency
    2.4GHz
  • Size
    14.8x18.2x1.9mm
  • Data Rate
    150Mbps
  • Power Supply
    3.3V
  • Type
    Realtek WiFi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/IC/KCC/SRRC/TELEC/NCC/ROHS/REACH
  • Model Number
    6188S-UF
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 1.5-2.7/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

150Mbps High Speed Wifi Module RTL8188FTV With PCB Antenna ROHS Certification

2.4G RTL8188FTV 802.11n 150Mbps USB Realtek WiFi Module With PCB Antenna



Realtek WiFi Module Introduction

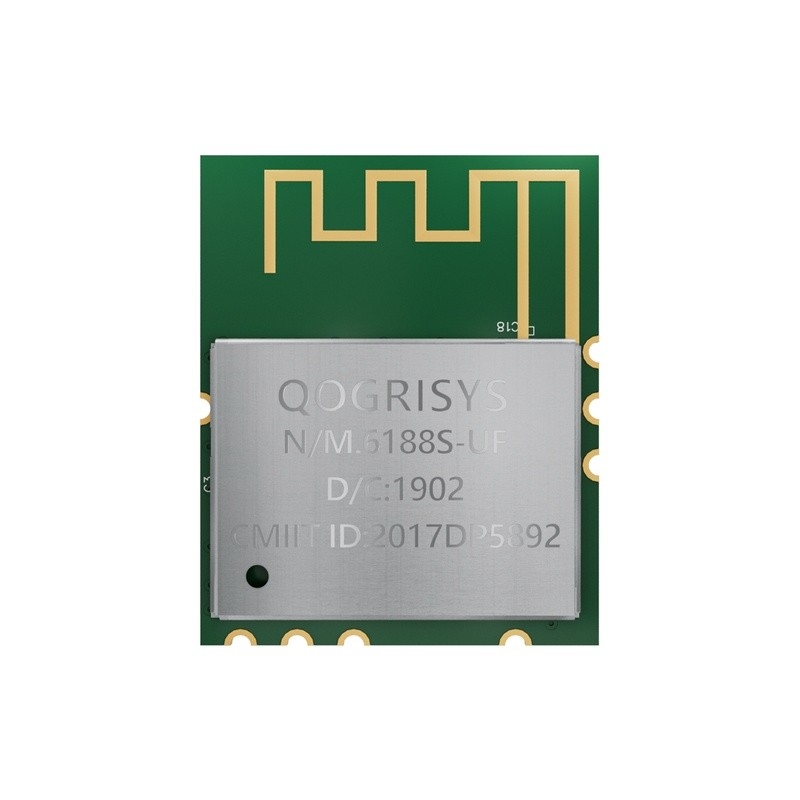

6188S-UF Realtek wifi module is based on Realtek RTL8188FTV chip which supports 802.11b/g/n. It is a Realtek wifi module with single PCB antenna.

Realtek WiFi Module Detailed Parameters

Model No 6188S-UF Main Chipset RTL8188FTV
Interface USB WiFi Standard IEEE802.11b/g/n
Data Rate 150Mbps Certification ROHS REACH
RF Antenna PCB Antenna OS Supported Linux/Android/Windows
Frequency 2.4GHz Power Supply 3.3V
Size 14.8x18.2x1.9mm RF Chain 1T1R
Operating Temperature 0° Cto 70°C Storage Temperature -40° Cto 85°C

Realtek WiFi Module Features

Operate at ISM frequency bands (2.4GHz)

USB Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Enterprise level security which can apply WPA/WPA2 certification for WiFi

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

Realtek WiFi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note


Welcome to visit our website to learn more about Realtek wifi module.
