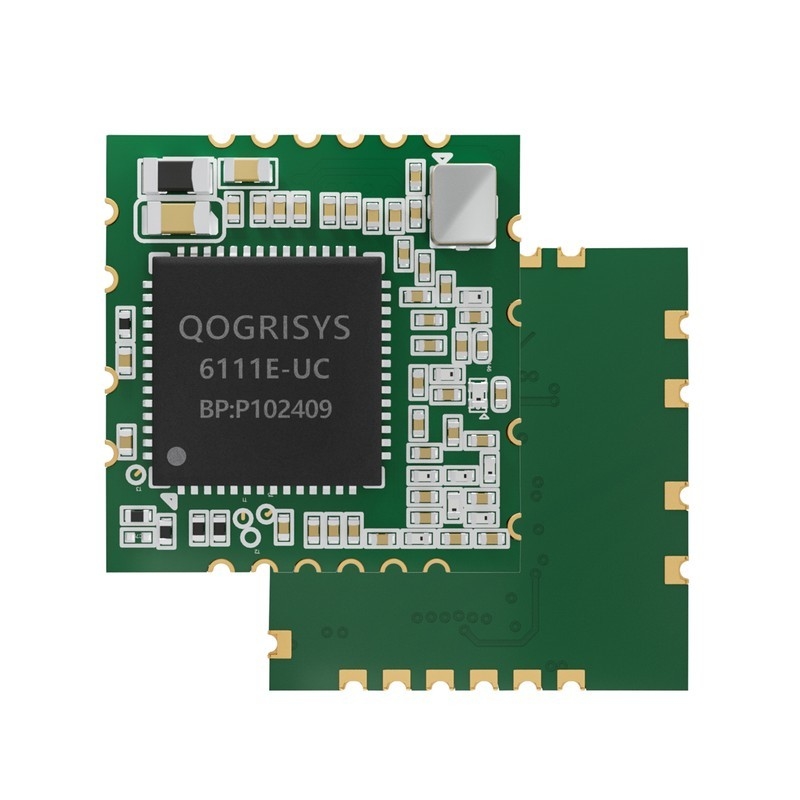

802.11ac Dual Band Wifi Module RTL8811CU  USB WiFi Direct Module

802.11ac Dual Band Wifi Module RTL8811CU USB WiFi Direct Module

  • High Light

    usb wifi bluetooth module

    ,

    wifi camera module

  • Chipset
    RTL8811CU
  • WIFI Standard
    IEEE802.11a/b/g/n/ac
  • Frequency
    2.4GHz/5.8GHz
  • Interface
    USB
  • OS Support
    Windows/Android /Linux
  • Security
    WEP,TKIP,AES,WPA,WPA2
  • Size
    12.2x13.0x1.7mm
  • Application
    WiFi Extender
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    ROHS/REACH
  • Model Number
    6111E-UC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 5.2-7.2/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

802.11ac Dual Band Wifi Module RTL8811CU USB WiFi Direct Module

Dual Band RTL8811CU 802.11ac USB WiFi Direct Module For WiFi Range Extender



USB WiFi Module Introduction

6111E-UC is a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides USB interface for Wi-Fi . The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanism to ensure backward and network compatibility.
The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN. The integrated module provides USB interface for Wi-Fi . This compact module is a total solution for a combination of Wi-Fi technologies. The module is specifically developed for Smart phones and Portable devices.

USB WiFi Module Detailed Parameters

Model No 6111E-UC Main Chipset RTL8811CU
Interface USB WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Windows/Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 12.2x13.0x1.6mm RF Chain 1T1R
Operating Temperature 0° C to 70°C Storage Temperature -55° C to 85°C

USB WiFi Module Features

Support 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA mode
Complete 802.11n MIMO solution for 2.4GHz and 5GHz band
Complies with USB2.0 for WLAN controller
USB LPM/Selective Suspend supported

USB WiFi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
