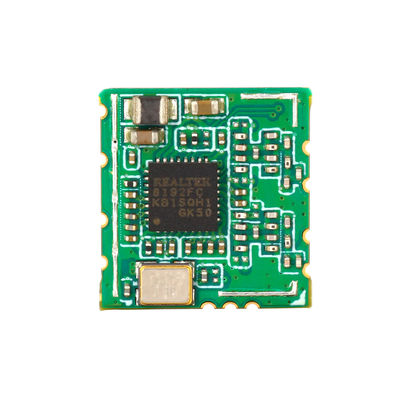

300mbps Data Rate Wifi Video Module IEEE802.11b/G/N RTL8192EU Realtek WiFi Module
-
High Light
300mbps Wifi Video Module
,2T2R Antenna Wifi Video Module
,RTL8192EU Realtek WiFi Module
-
ChipsetRTL8192FC
-
USB PortSupport USB V1.0/1.1/2.0
-
Package12.2 X 12.9 X 1.7 Mm
-
Operating Temperature0°C To 70°C
-
Storage Temperature-40°C To 85°C
-
Antenna Type2T2R
-
Place of OriginChina
-
Brand NameFN-LINK
-
CertificationROHS/REACH
-
Model Number6192E-UC
-
Minimum Order Quantity5/pcs
-
PriceUSD 4.1-5.5/pcs
-
Packaging DetailsReel
-
Delivery Time15-40 workdays
-
Payment TermsT/T
-
Supply Ability4000000pcs/month
300mbps Data Rate Wifi Video Module IEEE802.11b/G/N RTL8192EU Realtek WiFi Module
300mbps Data Rate Low Cost Wifi Video Module IEEE802.11b/g/n RTL8192EU Realtek WiFi Module
Quick View Of RTL8192FC Wifi Module
- 12.2x12.9mm, 3.3V power in.
- RTL8192FC.
- Complete 802.11n 2x2 MIMO solution for 2.4GHz, maximum data rate up to
- 300Mbps using 40Mhz bandwidth.
- Complies with USB2.0 for WLAN.
Detailed Parameters Of RTL8192FC Wireless Module
| Model No | 6192E-UC | Main Chipset | RTL8192EU |
| Interface | USB | WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 300Mbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
| Frequency | 2.4GHz | Power Supply | 3.3V |
Schematic Diagram
Pin Foots
| NO | Name | Type | Description | Voltage |
| 1 | GND | － | Ground connections | |
| 2 | ANT 0 | I/O | RF I/O port0 | |
| 3 | ANT 1 | I/O | RF I/O port1 | |
| 4 | GND | － | Ground connections | |
| 5 | VDD33 | P | Main power voltage source input 3.3V | 3.3V |
| 6 | USB_DM | I/O | USB D- | |
| 7 | USB_DP | I/O | USB D+ | |
| 8 | GND | － | Ground connections | |
| 9 | NC | － | Floating (Don’t connected to ground) | |
| 10 | NC | － | Floating (Don’t connected to ground) | |
| 11 | NC | － | Floating (Don’t connected to ground) |
