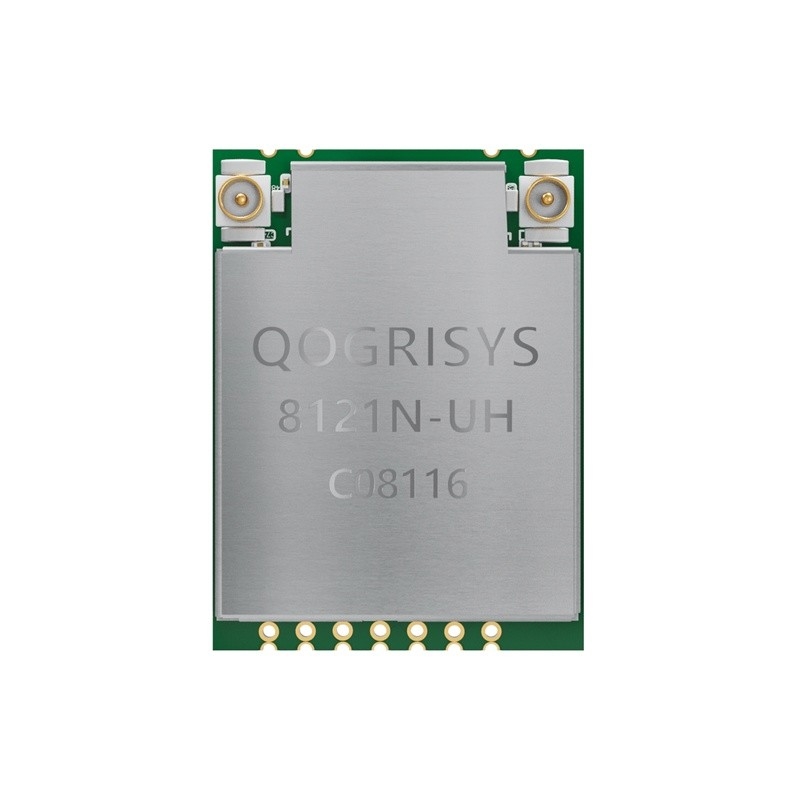

RA1021 2.4g 5g 2T2R Dual Band WIFI Module USB 2.0 FEM

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 8121N-UH

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 5.8-8/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

2T2R Dual Band WIFI Module

,

RA1021 Dual Band WIFI Module

,

USB 2.0 FEM Wifi Transceiver Module

RF Chipset:
Qualcomm Atheros AR1021X
Working Frequency:
5G Only
WLAN Host Interface:
USB 2.0
Working Power Supply:
5V Power Supply
Output Power:
17dBm
Main Application:
Gimbal Stabilizer For Smartphone&Camera
RF Chipset:
Qualcomm Atheros AR1021X
Working Frequency:
5G Only
WLAN Host Interface:
USB 2.0
Working Power Supply:
5V Power Supply
Output Power:
17dBm
Main Application:
Gimbal Stabilizer For Smartphone&Camera
RA1021 2.4g 5g 2T2R Dual Band WIFI Module USB 2.0 FEM

RA1021 2.4g 5g 2T2R Dual Band WIFI Module USB 2.0 FEM



Introduction

Fn-Link Technology announce a low-cost and high-power consumption module which has 5g of the WiFi functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Long-distance audio and video transmission,Wireless HDMI Extender applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/n 2x2 5G only Access Points in the wireless LAN.

The wireless module complies with IEEE 802.11 a/n 2x2 MIMO standard and it can achieve up to a speed of 300Mbps with dual stream in 802.11n to connect the wireless LAN. The integrated module provides USB interface for WiFi .

RA1021 2.4g 5g 2T2R Dual Band WIFI Module USB 2.0 FEM 0RA1021 2.4g 5g 2T2R Dual Band WIFI Module USB 2.0 FEM 1RA1021 2.4g 5g 2T2R Dual Band WIFI Module USB 2.0 FEM 2

Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11a/n WLAN applications.

Dual-stream spatial multiplexing up to 300 Mbps data rate. Supports 20/40MHz Bandwidth
Supports USB interface for WLAN.
Integrated high power FEM.





General Specification

Model Name

8121N-UH

Product Description

Support WiFi

Dimension

L x W x H: 27 x 20 x 2.3 (typical) mm

WiFi Interface

Support USB2.0

Operating temperature

-30°C to 85°C

Storage temperature

-40°C to 125°C

Humidity

Operating Humidity 10% to 95% Non-Condensing
