2.4G 5G Qualcomm WiFi Module QCA6174 Chip FMini PC 802.11 Ac Wifi Module

2.4G 5G Qualcomm WiFi Module QCA6174 Chip FMini PC 802.11 Ac Wifi Module

  • High Light

    wifi bluetooth module

    ,

    wifi bluetooth usb module

  • Chipset
    QCA6174
  • WIFI Standard
    IEEE802.11a/b/g/n/ac
  • Interface
    PCIe/Uart
  • Size
    15.0x13.0x1.9mm
  • Antenna
    External Antenna
  • Type
    PCIe WiFi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/SRRC/ROHS/REACH
  • Model Number
    8274B-PR
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 5.9-8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

2.4G 5G Qualcomm WiFi Module QCA6174 Chip FMini PC 802.11 Ac Wifi Module

2.4G 5G Qualcomm WiFi Module QCA6174 Chip FMini PC 802.11 Ac Wifi Module



Qualcomm WiFi Module Introduction

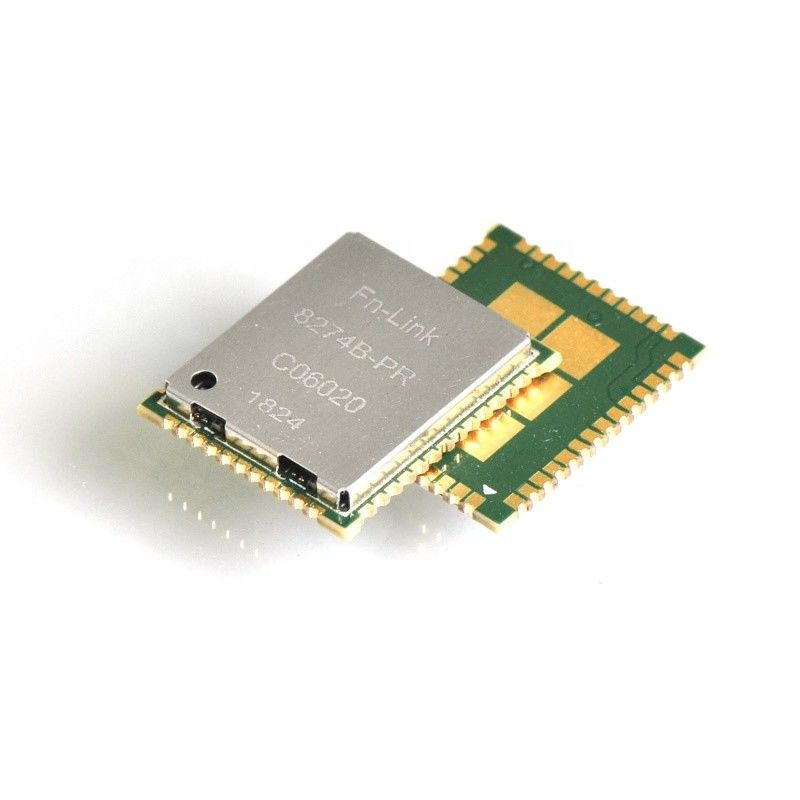

8274B-PR PCIe wifi module is a very high performance module that includes 2.4GHz/5GHz WLAN and Bluetooth functionality for consumer grade applications. Based on Qualcomm QCA6174, the module provides IEEE 802.11a/b/g/n/ac (2x2) and Bluetooth 4.2+EDR.



Qualcomm WiFi Module Detailed Parameters

Model No 8274B-PR Main Chipset QCA6174
Interface PCIe/Uart WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 867Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 15.0x13.0x1.9mm RF Chain 2T2R
Operating Temperature -30° C to 85°C Storage Temperature -40° C to 125°C





Qualcomm WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power PCI-e interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data



Qualcomm WiFi Module Application Range

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics



Purchase
Please engage with our sales team to determine if this module is suitable for your applications.Regarding sample request,please inform us the detail of your project, thanks for your supports.
