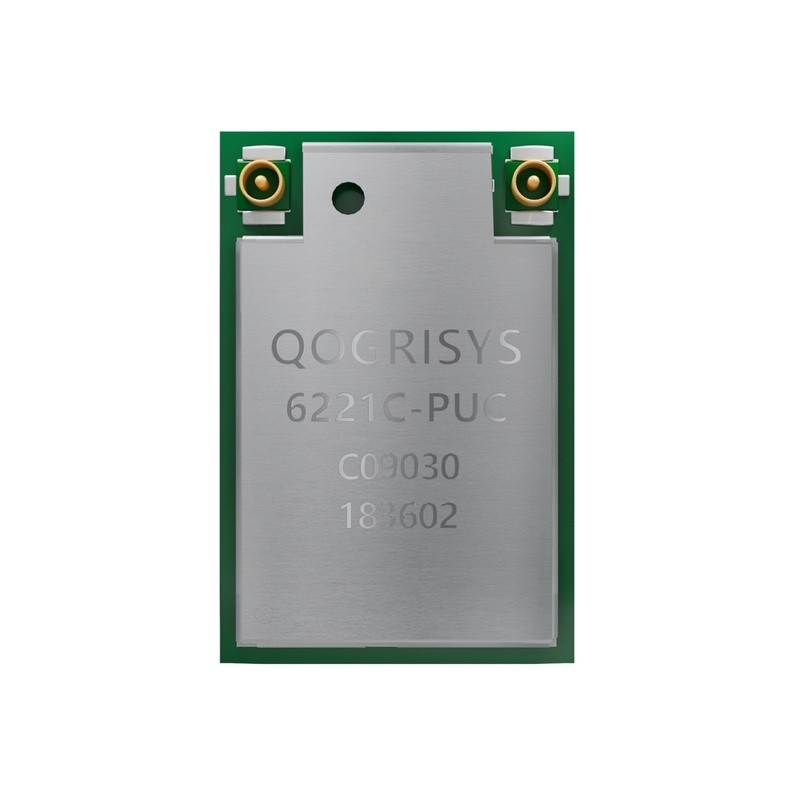

RTL8821CE Bluetooth 4.2 1x1 433Mbps Dual Band WiFi Module Ipex Connector

RTL8821CE Bluetooth 4.2 1x1 433Mbps Dual Band WiFi Module Ipex Connector

  • High Light

    433Mbps Dual Band WiFi Module

    ,

    1x1 Dual Band WiFi Module

    ,

    RTL8821CE

  • Part Number
    RTL8821CE
  • Manufacturer
    Realtek
  • Description
    802.11ac/abgn PCIe WLAN With Bluetooth 4.2 Single-Chip Controller
  • Technology
    WiFi Bluetooth Combo
  • MU-MIMO
    Support
  • MIMO Antenna
    1x1
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/SRRC/ROHS/REACH
  • Model Number
    6221C-PUC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 3.9-5.5/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

RTL8821CE Bluetooth 4.2 1x1 433Mbps Dual Band WiFi Module Ipex Connector

RTL8821CE Dual Band 1x1 11ac+Bluetooth 4.2 WiFi Module For PC/NB



The RTL8821CE from Realtek is a Wireless SoC that supports 1-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) and Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 2.1/3.0/4.2 USB interface controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in a single chip. The RTL8821CE provides a complete solution for a high-performance integrated wireless and Bluetooth device

Key Features

802.11a/b/g/n/ac compatible

Single-stream spatial multiplexing up to 433 Mbps data rate

Low power PCI-e interface for WLAN and USB/PCM interface for Bluetooth

Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate

WLAN-Bluetooth coexistence and ISM-LTE coexistence



Product Information

Model No: 6221C-PUC

Main Chipset: RTL8821CE

Frequency Band: 2.4GHz/5.8GHz

Wireless Standard: IEEE802.11a/b/g/n/ac+Bluetooth 4.2

Host Interface: PCIe/USB/PCM

Data Rate: 433Mbps

Antenna Type: External Antenna With Two IPEX Connector

Power Supply: 3.3V

Dimension: 16.0x12.0x1.8mm

Operating Temperature: 0° C to 70°C



Dimensions

RTL8821CE Bluetooth 4.2 1x1 433Mbps Dual Band WiFi Module Ipex Connector 0



Connector Information

RTL8821CE Bluetooth 4.2 1x1 433Mbps Dual Band WiFi Module Ipex Connector 1
