| Product Description: | Support Wi-Fi/Bluetooth Functionalities | WIFI Standard: | IEEE802.11a/b/g/n/ac |
|---|---|---|---|
| Bluetooth Standard: | Bluetooth V4.2 Of 1, 2 And 3 Mbps. | Color: | Green |
| Shield: | Yes | LXW: | 13.0X12.2mm |
| Highlight: | wifi transmitter and receiver module,wireless bluetooth module |
||

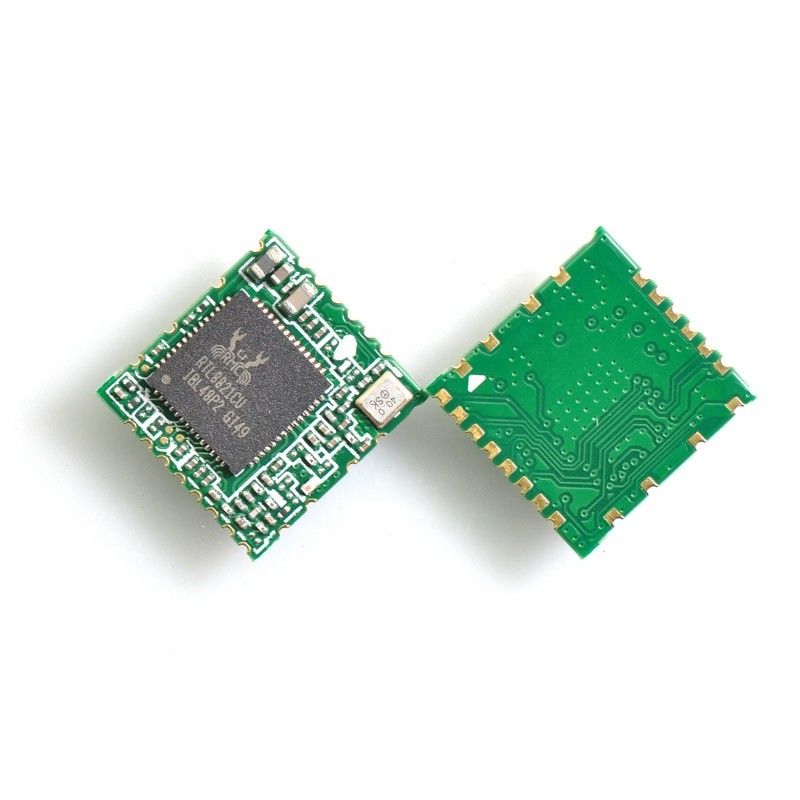

6221E-UUC is a highly integrated USB Wi-Fi module which supports 433Mbps PHY rate. It is compliant with IEEE 802.11ac draft specification, offering feature-rich wireless connectivity and reliable throughput from an extended distance.
Features
1.Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications
2.Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
3.Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate
4.Supports WLAN-Bluetooth coexistence
5.Supports Bluetooth for class1,class2 and class 3 power level transmissions without requiring an external PA
Q&A About 6221E-UUC
1.what's the wireless protocol?
5GHZ for 802.11ac, or 2.4G/5G for 802.11n.
2.what's bandwitdth of 6221E-UUC?
HT20/40/80
3.Can it support wlan-bluetooth coexistence?
yes
Power Comsumption
| VCC33 = 3.3V(Unit:mA) | |
| Wi-Fi on Mode | 90 |
| TX (2.4G HT40) | 241 |
| RX (2.4G HT40) | 115 |
| TX (5G HT80) | 219 |
| RX (5G HT80) | 128 |
| BT on | 4 |
Application Scenarios
