IPEX Connector Realtek 2.4G 5G RTL8822CU Embedded WiFi Module

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6222D-UUC

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 4.5-7.5/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

RTL8822CU Wifi Wireless Routers

,

IPEX Connector Realtek Wifi Module

Part No:
6222D-UUC
Part Type:
Dual Band WiFi Module
Main IC:
RTL8822CU-CG
Function:
WiFi+Bluetooth
IPEX:
Two IPEX Connector
Shield Cover:
Yes
Part No:
6222D-UUC
Part Type:
Dual Band WiFi Module
Main IC:
RTL8822CU-CG
Function:
WiFi+Bluetooth
IPEX:
Two IPEX Connector
Shield Cover:
Yes
IPEX Connector Realtek 2.4G 5G RTL8822CU Embedded WiFi Module

Realtek 2.4G 5G Dual Band WiFi Module Embedded RTL8822CU USB WiFi Bluetooth Chip



This is a dual band 2.4/5 GHz 802.11 a/b/g/n/ac Wi-Fi module with integrated Bluetooth V5.0 BDR/EDR/LE, specifically designed for highly integrated and cost-effective applications. The simultaneous and independent operation of the two standards enables high data rates and low-power consumption.

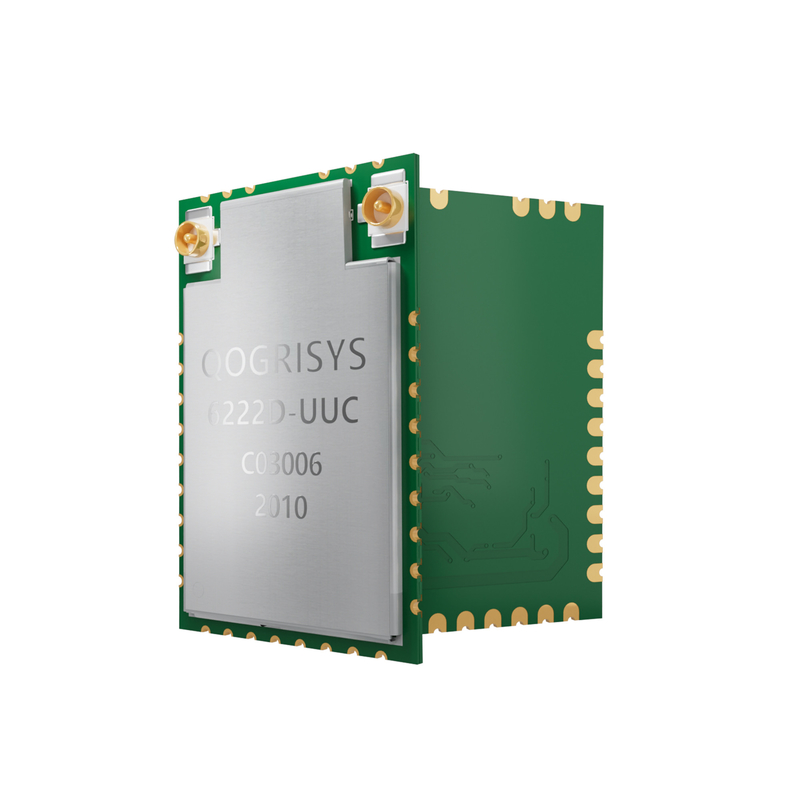

IPEX Connector Realtek 2.4G 5G RTL8822CU Embedded WiFi Module 0

Specification

Main Chipset Realtek RTL8822CU
Interface Type USB 2.0 for WLAN and BT
MIMO Antenna 2×2 (2-stream)
Operating Frequency Band

2.400 ~ 2.497GHz

4.900 GHz ~ 5.845 GHz
Demension
L x W x H: 27 x 18 x 2.03 mm
Operating Temperature Range
0°C to 70°C
Storage Temperature Range
-40°C to 85°C
Driver Support Windows, Linux, Android

Recommended Operating Rating


Min.
Typ.
Max.
Unit
Operating Temperature
-10
25 70
deg.C
VCC33
3.15 3.3 3.45 V
VDDIO
- 3.3 - V







Power Consumption








VCC33 = 3.3V(Unit:mA)
Wi-Fi on Mode
130
TX
(2.4G HT20)

455

RX
(2.4G HT20)
210
TX
(5G HT80)
510
RX
(5G HT80)
210
BT on
32
