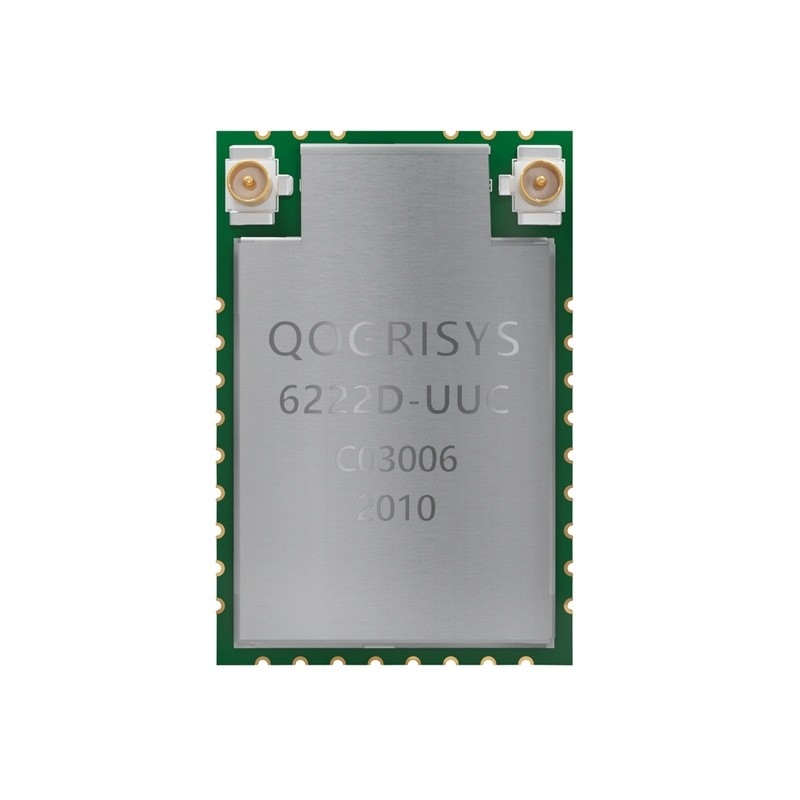

802.11ac USB WiFi Module RTL8822CU WiFi Bluetooth Chip With External Antenna

802.11ac USB WiFi Module RTL8822CU WiFi Bluetooth Chip With External Antenna

Products - USB WiFi Module
  • High Light

    802.11 ac wifi module

    ,

    wifi camera module

    ,

    802.11ac USB WiFi Module

  • Status
    New Product
  • Name
    USB WiFi Module
  • Solution
    Realtek RTL8822CU
  • Standards
    WiFi: IEEE802.11a/b/g/n/ac Bluetooth: 5.0
  • Interface Type
    USB
  • Antenna Type
    Connect To The External Antenna By IPEX Connector
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/ROHS/REACH
  • Model Number
    6222D-UUC-W2
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 6.5-8.8/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

802.11ac USB WiFi Module RTL8822CU WiFi Bluetooth Chip With External Antenna

  • 802.11ac USB WiFi Module RTL8822CU WiFi Bluetooth Chip With External Antenna
Get Price Contact Now



802.11ac USB WiFi Module RTL8822CU WiFi Bluetooth Chip With External Antenna



This module is an 802.11ac/a/b/g/n dual band 2×2 WiFi and Bluetooth (BT) combo USB module designed for devices which require high throughput and lower-power consumption. It’s a highly integrated module that supports 2-stream 802.11ac/a/b/g/n MIMO technology with 867Mbps data rate in 20/40/80MHz channels, and BT V5.0.

Key Features

  • Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
  • Dual stream spatial multiplexing up to 867Mbps data rate
  • Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
  • Supports USB interface for WLAN and Bluetooth.
  • Supports Bluetooth V5.0+HS, BLE and be backwards compatiblewith Bluetooth 1.2,2.X+ enhance data rate.
  • Support Bluetooth for class 1 and class 2 power level transmissions.

Softeware Specification

Standards 802.11ac; 802.11n; 802.11a; 802.11g; 802.11b, BT V5.0 (BDR/EDR/LE)
Driver Support Windows, Linux, Android
Security 64/128-bits WEP, WPA, WPA2, IEEE 802.1x,
EAP-FAST, PEAPv1/EAP-GTC,
PEAPv0/EAP-MSCHAPv2, PEAP-TLS,
LEAP, EAP-TLS, EAP-TTLS

Hardware Specification

Chipset Realtek RTL8822CU
Interface USB Interface (USB 2.0 for WLAN and BT)
MIMO Configuration 2×2 (2-stream)
Frequency Band 2.400 ~ 2.497GHz, 5.15 ~ 5.85GHz
Operating Voltage 3.3V DC ± 5%
Storage Temperature Range 0 ~ 70°C
Health & Environment-Friendly RoHS, REACH
