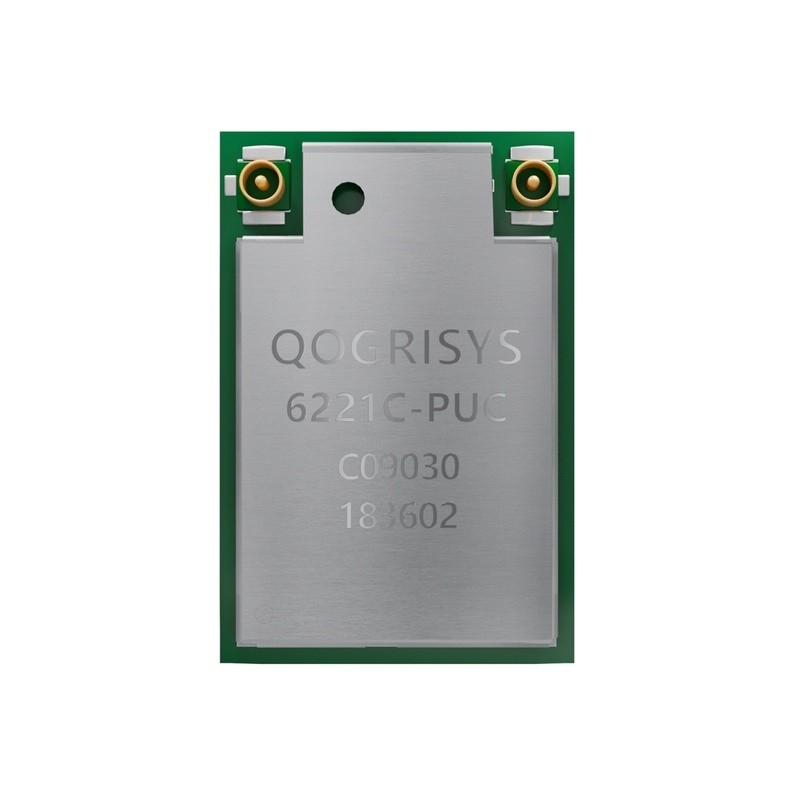

Mini PC Realtek WiFi Module RTL8821CE 802.11ac Wireless With PCIe Interface

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: CE/FCC/ROHS/REACH

Model Number: 6221C-PUC

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 3.5-5.0/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

lora gateway module

,

embedded wifi mod

Solution:
Realtek WiFi Module
Technology:
WiFi + Bluetooth
Wireless Standard:
802.11a/b/g/n/ac+Bluetooth 4.2
MIMO:
Yes
MIMO Configuration:
1x1
Application:
PC/NB
Solution:
Realtek WiFi Module
Technology:
WiFi + Bluetooth
Wireless Standard:
802.11a/b/g/n/ac+Bluetooth 4.2
MIMO:
Yes
MIMO Configuration:
1x1
Application:
PC/NB
Mini PC Realtek WiFi Module RTL8821CE 802.11ac Wireless With PCIe Interface

Mini PC Realtek WiFi Module RTL8821CE 802.11ac Wireless With PCIe Interface



The Chip Of Description

The RTL8821CE from Realtek is a Wireless SoC that supports 1-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) and Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 2.1/3.0/4.2 USB interface controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in a single chip. The RTL8821CE-CG provides a complete solution for a high-performance integrated wireless and Bluetooth device.

General Specifications

Main Chipset RTL8821CE
Product Description
Support Wi-Fi/Bluetooth functionalities
Dimension
L x W x H: 16x 12x 1.8 (typical) mm
WiFi Interface



Support PCI-e
BT Interface
USB/ PCM
Operating Temperature
0°C to70°C
Storage Temperature
-55°C to 125°C
RoHS
All hardware components are fully compliant with EU RoHS
directive

Reference Design

Mini PC Realtek WiFi Module RTL8821CE 802.11ac Wireless With PCIe Interface 0

Application

PC&NB

Packing Information
Mini PC Realtek WiFi Module RTL8821CE 802.11ac Wireless With PCIe Interface 1
