Home > products > USB WiFi Module > 2.4G/5.8G Dual Band Low Power Wifi Module High Speed 433Mbps For Wifi IP Camera

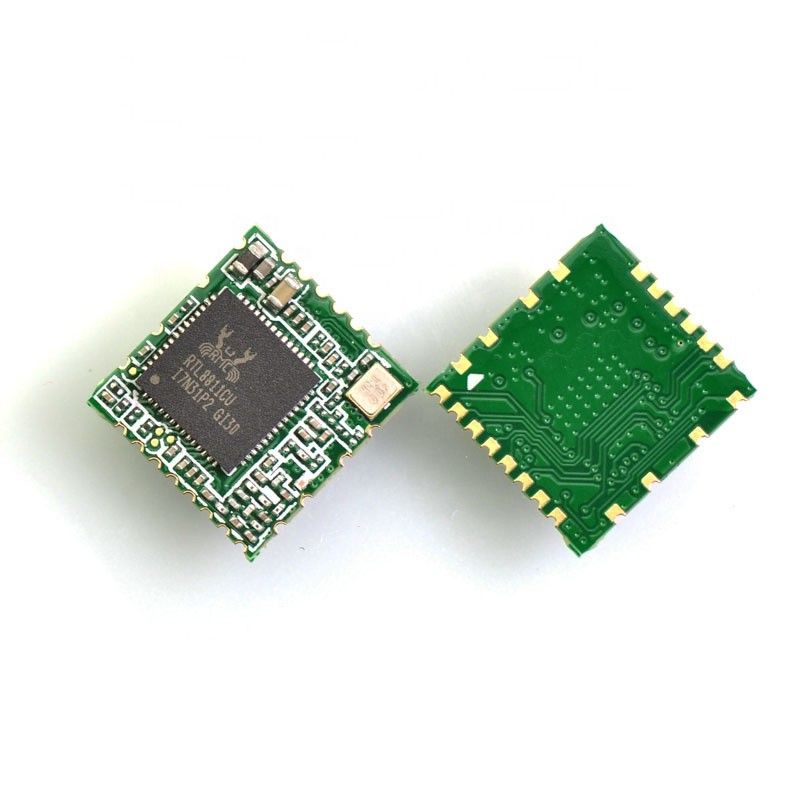

2.4G/5.8G Dual Band Low Power Wifi Module High Speed 433Mbps For Wifi IP Camera

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: ROHS/REACH

Model Number: 6111E-UC

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 3.8-5/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

usb wifi bluetooth module

,

802.11 ac wifi module

Main Chipset:
RTL8811CU
Operating Voltage:
3.3Vdc ±10%
Operating Frequency:
2.4GHz/5.8GHz
Host Interface:
USB
OS Operating Temperature:
0°C-70°C
Dimension:
12.2x13.0x1.7mm
Main Chipset:
RTL8811CU
Operating Voltage:
3.3Vdc ±10%
Operating Frequency:
2.4GHz/5.8GHz
Host Interface:
USB
OS Operating Temperature:
0°C-70°C
Dimension:
12.2x13.0x1.7mm
2.4G/5.8G Dual Band Low Power Wifi Module High Speed 433Mbps For Wifi IP Camera

High Speed 2.4G&5.8G Dual Band USB WiFi Module For Wifi IP Camera



USB WiFi Module Detailed Parameters

Model No 6111E-UC
WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps
RF Antenna External Antenna
RF Chain 1T1R
OS Supported Windows/Linux/Android

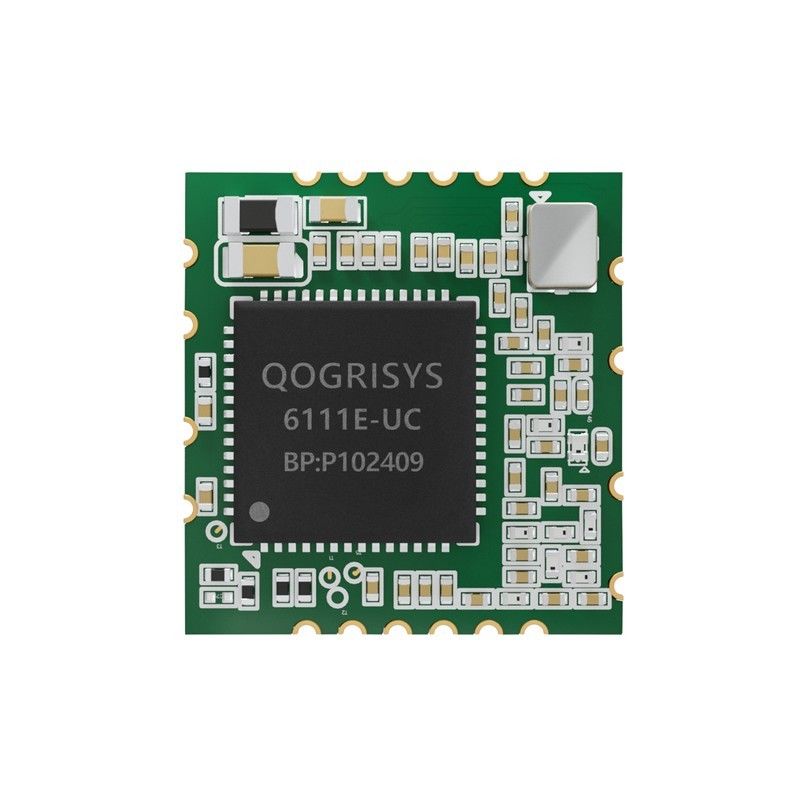

USB WiFi Module Introduction

6111E-UC usb wifi module is a module using highly integrated microcontroller, supporting ieee802.11a/b/g/n/ac 1T1R USB2.0 WLAN controller.It integrates the WLAN MAC, 1T1R WLAN baseband and WLAN RF into one module.this usb wifi module provides a complete solution for high throughput integrated wireless lans

USB WiFi Module Features

Support 802.11a/b//g/n/ac
Complete 802.11n MIMO solution for 2.4GHz and 5GHz band

USB2.0 interface for WLAN controller
USB LPM/Selective Suspend supported

USB WiFi Module Application Range

Printer/POS Machine/Projector/AI Meeting System/Interactive WhiteBoard/Drone/IPTV

Note



Please contact us before buying modules.Otherwise,the module may not meet your needs or modules are not in stock. Datasheets are available any time.
