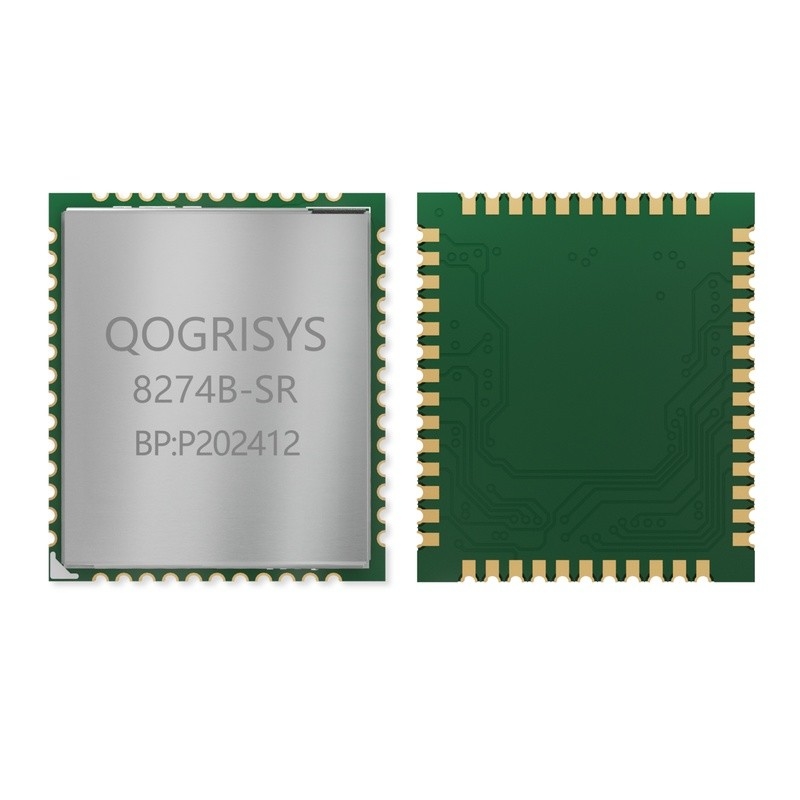

5GHz QCA6174 802.11ac 2T2R SDIO WiFi Module Compatible With BLE4.2

Product Details

Place of Origin: China

Brand Name: OFLYCOMM

Certification: SRRC/ROHS/REACH

Model Number: 8274B-SR

Payment & Shipping Terms

Minimum Order Quantity: 5/pcs

Price: USD 4.9-8/pcs

Packaging Details: Reel

Delivery Time: 15-40 workdays

Payment Terms: T/T

Supply Ability: 4000000pcs/month

Get Best Price
Highlight:

wifi bt combo module

,

high speed wifi module

Chipset:
QCA6174
Frequency:
2.4GHz/5.8GHz
Interface:
SDIO/Uart
Size:
15.0x13.0x1.9mm
Antenna:
External Antenna
Type:
SDIO WiFi Module
Chipset:
QCA6174
Frequency:
2.4GHz/5.8GHz
Interface:
SDIO/Uart
Size:
15.0x13.0x1.9mm
Antenna:
External Antenna
Type:
SDIO WiFi Module
5GHz QCA6174 802.11ac 2T2R SDIO WiFi Module Compatible With BLE4.2

5GHz QCA6174 802.11ac 2T2R SDIO WiFi Module Compatible With BLE4.2



SDIO WiFi Module Introduction

8274B-SR sdio wifi module is a very high performance module that includes 2.4GHz/5GHz WLAN and Bluetooth functionality for consumer grade applications. Based on Qualcomm QCA6174, the module provides IEEE 802.11a/b/g/n/ac (2x2) and Bluetooth 4.2+EDR.

SDIO WiFi Module Detailed Parameters
Model No 8274B-SR Main Chipset QCA6174
Interface SDIO/Uart WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 867Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Linux/Android
Frequency 2.4GHz/5.8GHz Power Supply 3.3V
Size 15.0x13.0x1.9mm RF Chain 2T2R
Operating Temperature -30° C to 85°C Storage Temperature



-40° C to 125°C




SDIO WiFi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.

802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.

Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.

Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.

Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.

Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.

BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data

SDIO WiFi Module Application Range

OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics

Purchase

Please engage with our sales team to determine if this module is suitable for your applications.Regarding sample request,please inform us the detail of your project, thanks for your supports.Skype:+8618280383459
