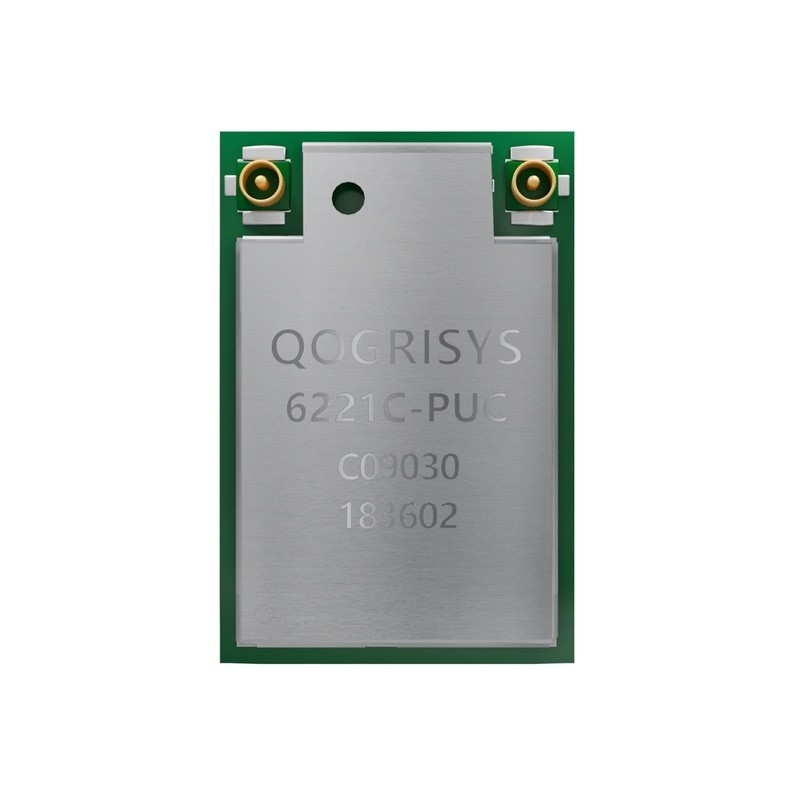

Ble4.2 Wifi Bluetooth Combo Module PCI-E Interface CE/FCC Certificated

Ble4.2 Wifi Bluetooth Combo Module PCI-E Interface CE/FCC Certificated

  • High Light

    wifi and bluetooth module

    ,

    wireless bluetooth module

    ,

    FCC Certificated Wifi Bluetooth Module

  • Chipset
    RTL8821CE
  • Frequency
    2.4/5.8GHz
  • Size
    16.0 * 12.0 * 1.8mm
  • Data Rate
    433Mbps
  • Power Supply
    3.3V
  • Type
    Dual Band Wifi Module
  • Place of Origin
    China
  • Brand Name
    FN-LINK
  • Certification
    CE/FCC/ROHS/REACH
  • Model Number
    6221C-PUC
  • Minimum Order Quantity
    5/pcs
  • Price
    USD 3.5-5.0/pcs
  • Packaging Details
    Reel
  • Delivery Time
    15-40 workdays
  • Payment Terms
    T/T
  • Supply Ability
    4000000pcs/month

Ble4.2 Wifi Bluetooth Combo Module PCI-E Interface CE/FCC Certificated

CE/FCC Certificated Dual Band Wifi Module PCI-E Interface Ble4.2 BT Module



Dual Band Wifi Module Introduction

6221C-PUC is  a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications.

6221C-PUC dual band  wifi module is based on Realtek RTL8821ce chip which supports 802.11a/b/g/n/ac.It is a dual band wifi module with single external antenna.

6221C-PUC dual band wifi module also supports bluetooth 4.2,Pcie Interface for wifi,usb for bt.

Dual Band Module Detailed Parameters

Model No 6221C-PUC Main Chipset RTL8821CE
Interface PCIE WiFi Standard IEEE802.11a/b/g/n/ac
Data Rate 433Mbps Certification ROHS REACH
RF Antenna External Antenna OS Supported Android/Linux
Frequency 2.4/5.8GHz Power Supply 3.3V
Size 16.0*12.0*1.8mm RF Chain 1T1R
Operating Temperature 0° Cto 70°C Storage Temperature -55° Cto 125°C

Dual Band Wifi Module Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.

Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

Supports low power PCI-e interface for WLAN and USB/PCM interface for Bluetooth.

Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.

Dual Band Wifi Module Application Range

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

Note
Dear customer,please contact sales if you would like to know more details about this rtl8822ce dual band  wifi module.
