| Chipset: | RTL8723DS | WIFI Standard: | IEEE802.11b/g/n |
|---|---|---|---|
| Interface: | SDIO/Uart | Size: | 12.0x12.0x1.8mm |
| Antenna: | External Antenna | Type: | Realtek WiFi Module |
| Highlight: | embedded wifi mod,wifi speaker module,SDIO Interface Realtek WiFi Module |
||

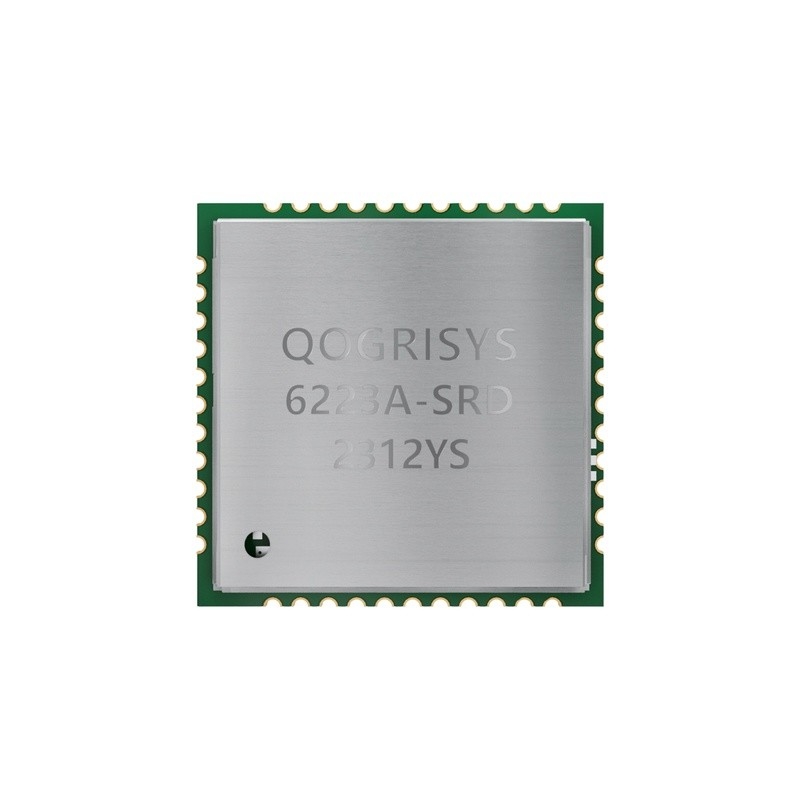

6223A-SRD realtek wifi module is a very high performance module that includes 2.4GHz WLAN and Bluetooth functionality for consumer grade applications. Based on Realtek RTL8723DS, the module provides IEEE 802.11b/g/n (1x1) and Bluetooth 4.2+EDR.
| Model No | 6223A-SRD | Main Chipset | RTL8723DS |
| Interface | SDIO/Uart | WiFi Standard | IEEE802.11b/g/n |
| Data Rate | 150Mbps | Certification | ROHS REACH |
| RF Antenna | External Antenna | OS Supported | Windows/Linux/Android |
| Frequency | 2.4GHz | Power Supply | 3.3V |
| Size | 12.0x12.0x1.8mm | RF Chain | 1T1R |
| Operating Temperature | 0° C to 70°C | Storage Temperature | -40° C to 85°C |
Operate at ISM frequency bands(2.4GHz)
SDIO for WiFi and Uart for Bluetooth
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE802.11e, IEEE802.11h,IEEE802.11i
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode
Fully qualified for Bluetooth 3.0
Fully qualified for Bluetooth 4.2 Dual mode
Full–speed Bluetooth operation with Piconet and Scatternet support
Enterprise level security which can apply WPA/WPA2 certification for WiFi
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150Mbps upstream PHY rates
OTT/IPTV/DVB/STB,Tablet PC,Laptop,Smart TV,IPC/NCR,Industrial Controllers ,DVR,Doorbell,Projector,
AR/VR,Printer/POS Terminal,Electronic Scale,Drone,Robot,HDMI Transmitter,Smart Gateway,Education,Toys and other Consumer Electronics
Purchase
Please engage with our sales team to determine if this module is suitable for your applications.Regarding sample request,please inform us the detail of your project, thanks for your supports.
